FCM 1608KF-121T06
ActiveTAI-TECH Advanced Electronics Co., Ltd.
120 OHMS @ 100 MHZ 1 POWER, SIGN
FCM 1608KF-121T06
ActiveTAI-TECH Advanced Electronics Co., Ltd.
120 OHMS @ 100 MHZ 1 POWER, SIGN
Description
General part information
FCM 1608KF-121T06

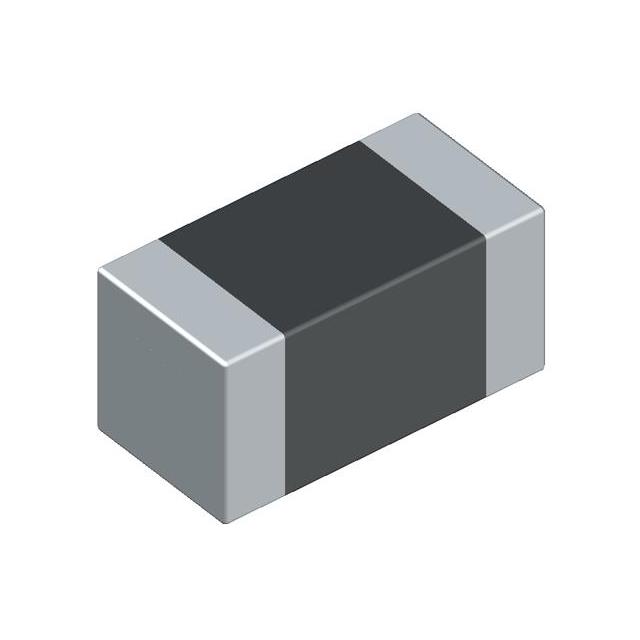

120 Ohms @ 100 MHz 1 Ferrite Bead 0603 (1608 Metric) 600mA 250mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | FCM 1608KF-121T06 |
|---|---|
| Current Rating (Max) | 600 mA |
| DC Resistance (DCR) (Max) | 250 mOhm |
| Height (Max) | 0.037 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
