153753
ObsoleteBeyond LED Technology

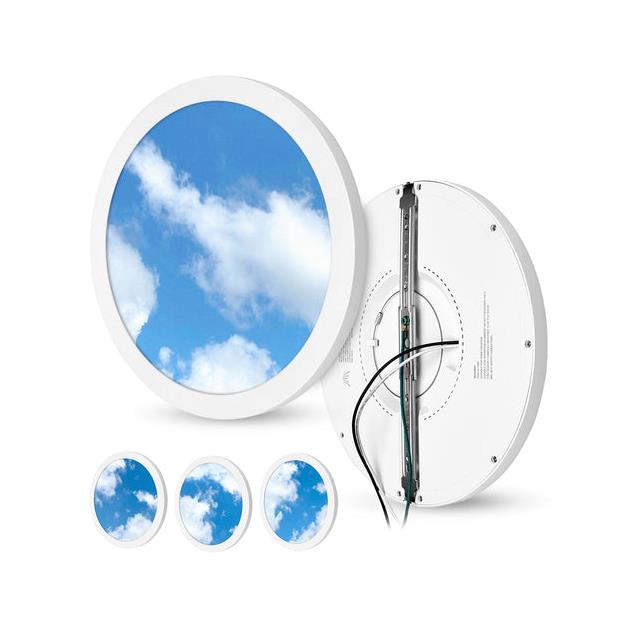

LED MOD COOL WHT RND 5000K 4PACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
153753
ObsoleteBeyond LED Technology
LED MOD COOL WHT RND 5000K 4PACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 153753 | - Series |
|---|---|---|
| CCT (K) | 5000 K | 5000 - 6500 K |
| CCT (K) | - | 5000K, 4000K, 3000K |
| Color | Cool, White | Yellow, Cool, White, Red, White, Neutral, White, Cool, White, Warm, Green, Blue, Warm |
| Configuration | Plug and Play, Round | Linear Light Strip, Flexible, Plug and Play, Round, Rectangle, Square |
| CRI (Color Rendering Index) | 80 | 80 - 90 |
| Current - Max | - | 180 - 203 mA |
| Features | IP20 | IP67, IP22, Dimming, IP65, IP20 |
| Height [z] | 15.49 mm | 1.78 - 33.02 mm |
| Lens Type | Flat | Flat, Tubular |
| Light Emitting Surface (LES) | - | 247.9 mm |
| Light Emitting Surface (LES) | - | 247.9 mm |
| Light Emitting Surface (LES) [diameter] | 248.92 mm | 248.92 mm |
| Lumens/Watt @ Current - Test | - | 94 - 125 lm/W |
| Luminous Flux @ Current/Temperature | 1200 lm | 376 - 4000 lm |
| Size / Dimension | - | 18 - 304.8 ' |
| Size / Dimension | - | 19.05 mm |
| Size / Dimension [diameter] | 291.85 mm | 8 - 291.85 in |
| Type | LED Module | LED Module, LED Engine |
| Viewing Angle | 120 ° | 120 - 180 ° |
| Voltage - Forward (Vf) (Typ) | 120 VAC | 12 - 198.5 V |
- Series
LED MOD YELLOW LINEAR STRIP
| Part | Lens Type | Features | Color | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Configuration | Type | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Height [z] | Luminous Flux @ Current/Temperature | CCT (K) | Viewing Angle | Size / Dimension [diameter] | CCT (K) | Current - Max [Max] | Size / Dimension [y] | Light Emitting Surface (LES) [x] | Light Emitting Surface (LES) [y] | Light Emitting Surface (LES) [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Beyond LED Technology 153705 | Flat | IP67 | Yellow | 50 ' | 120 V | Flexible, Linear Light Strip | LED Module | |||||||||||||
Beyond LED Technology 152727 | Tubular | Cool, White | 304.8 mm | 198.5 VAC | Linear Light Strip, Plug and Play | LED Engine | 125 lm/W | 80 | 28.7 mm | 376 lm | 6500 K | |||||||||
Beyond LED Technology 152730 | Tubular | Cool, White | 42 in | 198.5 VAC | Linear Light Strip, Plug and Play | LED Engine | 125 lm/W | 80 | 28.7 mm | 1440 lm | 6500 K | 180 ° | ||||||||
Beyond LED Technology 152733 | Tubular | Cool, White | 30 in | 198.5 VAC | Linear Light Strip, Plug and Play | LED Engine | 125 lm/W | 80 | 26.67 mm | 1644 lm | 6500 K | |||||||||
Beyond LED Technology 153706 | Flat | IP67 | Red | 50 ' | 120 V | Flexible, Linear Light Strip | LED Module | |||||||||||||
Beyond LED Technology 153845 | Flat | IP22 | Cool, White | 24 V | Flexible, Linear Light Strip | LED Module | 100 lm/W | 90 | 1.78 mm | 4000 lm | 6000 K | 180 ° | ||||||||
Beyond LED Technology 154329 | Flat | Dimming | White, Cool, White, Neutral, White, Warm | 188.5 VAC | Plug and Play, Round | LED Module | 100 lm/W | 2200 lm | 8 in | 3000K, 4000K, 5000K | ||||||||||
Beyond LED Technology 152729 | Tubular | Cool, White | 30 in | 198.5 VAC | Linear Light Strip, Plug and Play | LED Engine | 125 lm/W | 80 | 28.7 mm | 1008 lm | 6500 K | 180 ° | ||||||||
Beyond LED Technology 153700 | Flat | IP65 | Green | 70.1 mm | 12 V | Linear Light Strip | LED Module | 7.37 mm | 203 mA | 19.05 mm | ||||||||||
Beyond LED Technology 154305 | Flat | IP65 | White, Cool, White, Neutral, White, Warm | 198.5 VAC | Rectangle | LED Module | 110 lm/W | 3000K, 4000K, 5000K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 287.99 | |
Description
General part information
- Series
LED Lighting COBs Engines Modules LED Module - White, Cool Round, Plug and Play
Documents
Technical documentation and resources
