Description
General part information

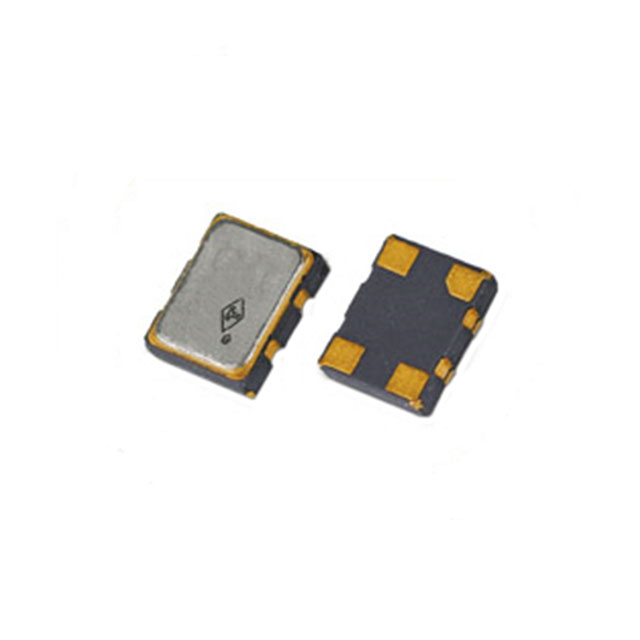

TYECCCSANF-38.400000
38.4 MHz VCTCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TYECCCSANF-38.400000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2.5 mA |
| Frequency | 38.4 MHz |
| Frequency Stability | 2 ppm |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | VCTCXO |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 2.8 V |
