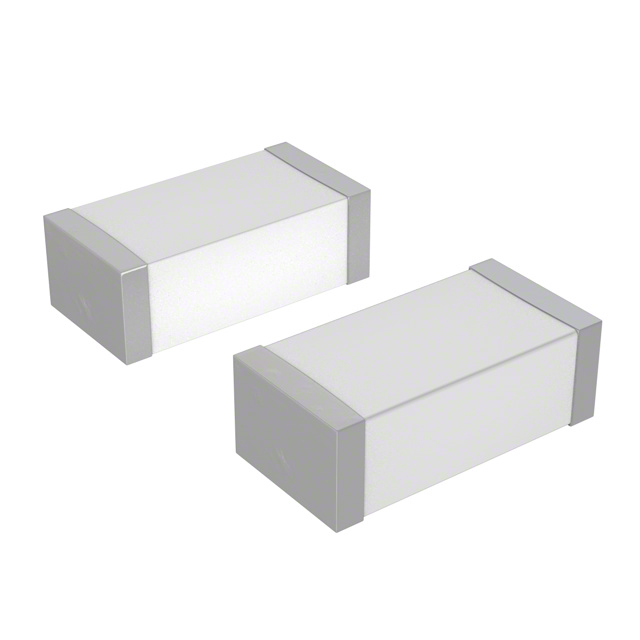

FCN1206A182J-H2
ObsoleteCornell Dubilier Knowles
CAP FILM 1800PF 5% 100VDC 1206
FCN1206A182J-H2
ObsoleteCornell Dubilier Knowles
CAP FILM 1800PF 5% 100VDC 1206
Description
General part information
FCN1206A182J-H2
1800 pF Film Capacitor 63V 100V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | FCN1206A182J-H2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1800 pF |
| Dielectric Material | Polyester, Metallized - Stacked, Polyethylene Naphthalate (PEN) |
| Height - Seated (Max) | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Termination | Solder Pads |
| Tolerance | 5 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
