35RASMT2AHNTRX
ActiveSwitchcraft Inc.

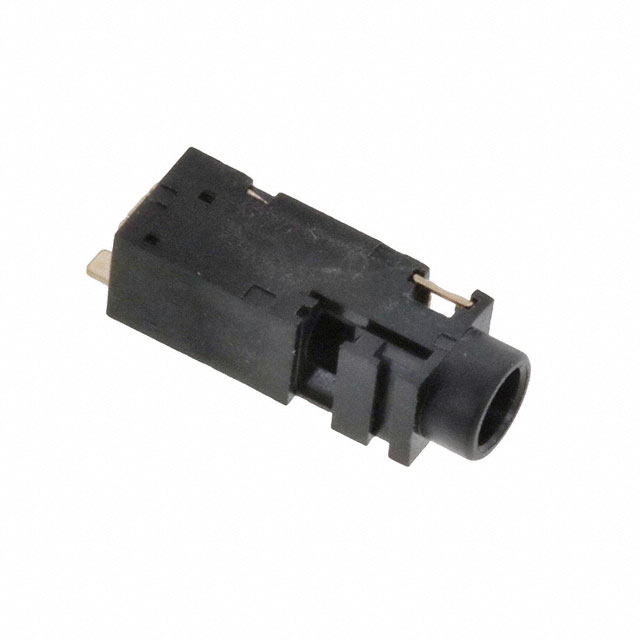

CONN JACK MONO 3.5MM SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

35RASMT2AHNTRX
ActiveSwitchcraft Inc.
CONN JACK MONO 3.5MM SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 35RASMT2AHNTRX | 35RASM Series |
---|---|---|
Actual Diameter [diameter] | 0.142 in | 0.142 in |
Actual Diameter [diameter] | 3.6 mm | 3.6 mm |
Body Color | Black | Black |
Connector Type | Phone Jack | Phone Jack |
Contact Material | Copper Alloy | Copper Alloy |
Contact Material - Plating | - | Silver |
Current Rating (Amps) | 3 A | 3 A |
Features | Board Guide | Board Guide |
Gender | Female | Female |
Housing Material | Thermoplastic | Thermoplastic |
Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
Internal Switch(s) | Single Switch | Two Switches, Single Switch |
Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
Number of Positions/Contacts | - | 3 |
Number of Positions/Contacts | - | 4 - 5 |
Operating Temperature [Max] | 85 °C | 85 °C |
Operating Temperature [Min] | -25 °C | -25 °C |
Shielding | Unshielded | Unshielded |
Signal Lines | Mono | Stereo, Mono |
Termination | Solder | Solder |
Voltage - Rated | 250 VAC | 250 VAC |
35RASM Series
CONN JACK STEREO 3.5MM SMD R/A
Part | Contact Material - Plating [custom] | Housing Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Contact Material | Voltage - Rated | Current Rating (Amps) | Termination | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Connector Type | Internal Switch(s) | Body Color | Signal Lines | Actual Diameter [diameter] | Actual Diameter [diameter] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shielding | Gender | Number of Positions/Contacts |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35RASMT4BHNTRX | Silver | Thermoplastic | 3 | 5 | Copper Alloy | 250 VAC | 3 A | Solder | 0.141 " | 0.125 " | 3.5 mm | Phone Jack | Two Switches | Black | Stereo | 0.142 in | 3.6 mm | Board Guide | -25 °C | 85 °C | Surface Mount, Right Angle | Unshielded | Female | |
Switchcraft Inc. 35RASMT2AHNTRX | Thermoplastic | Copper Alloy | 250 VAC | 3 A | Solder | 0.141 " | 0.125 " | 3.5 mm | Phone Jack | Single Switch | Black | Mono | 0.142 in | 3.6 mm | Board Guide | -25 °C | 85 °C | Surface Mount, Right Angle | Unshielded | Female | 2 Conductors, 3 Conductors | |||
Switchcraft Inc. 35RASMT3BHNTRX | Silver | Thermoplastic | 3 | 4 | Copper Alloy | 250 VAC | 3 A | Solder | 0.141 " | 0.125 " | 3.5 mm | Phone Jack | Single Switch | Black | Stereo | 0.142 in | 3.6 mm | Board Guide | -25 °C | 85 °C | Surface Mount, Right Angle | Unshielded | Female |
