936098-1

Active

TE Connectivity AMP Connectors

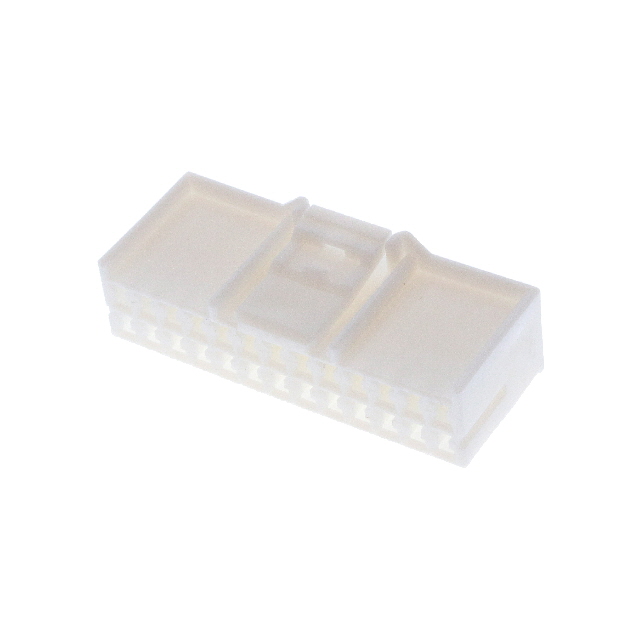

CONN PLUG HSG 26POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 26POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	936098-1	936098 Series

Color	White	Black, White
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	45° Angle, Free Hanging (In-Line)	45° Angle, Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	26	26
Number of Rows	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C

CONN PLUG HSG 26POS BLACK

Part	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Contact Termination	Fastening Type	Color	Note	Insulation Material	Number of Rows
TE Connectivity AMP Connectors 936098-2	Female Socket	Plug	-40 °C	80 C	45° Angle, Free Hanging (In-Line)	26	Crimp	Latch Lock	Black	Contacts Not Included	Polybutylene Terephthalate (PBT)	2
TE Connectivity AMP Connectors 936098-1	Female Socket	Plug	-40 °C	80 C	45° Angle, Free Hanging (In-Line)	26	Crimp	Latch Lock	White	Contacts Not Included	Polybutylene Terephthalate (PBT)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Rectangular Connectors - Housings Plug White
