Technical Specifications
Parameters and characteristics for this part
| Specification | DMG7430LFGQ-13 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 10.5 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 26.7 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 1281 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

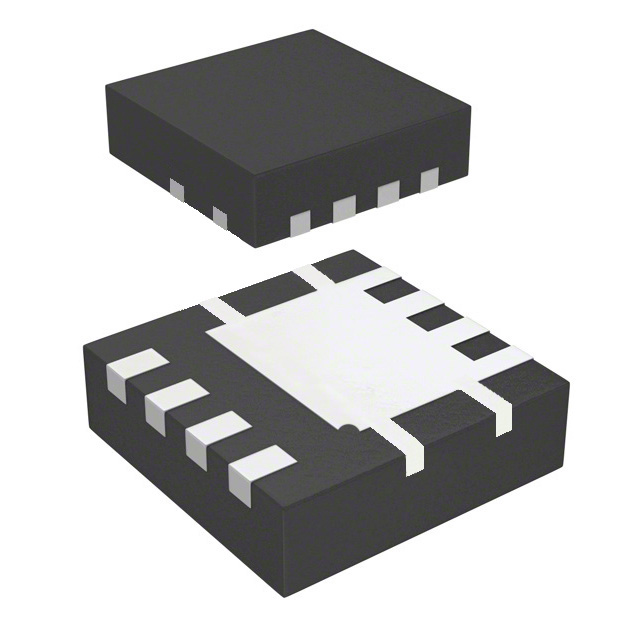

| Package / Case | 8-PowerVDFN |
| Power Dissipation (Max) [Max] | 900 mW |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 11 mOhm |
| Supplier Device Package | POWERDI3333-8 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.26 | |
| 6000 | $ 0.24 | |||
| 9000 | $ 0.23 | |||
| 15000 | $ 0.22 | |||
Description
General part information
DMG7430LFGQ Series
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: motor controls, power-management functions, and DC-DC converters.
