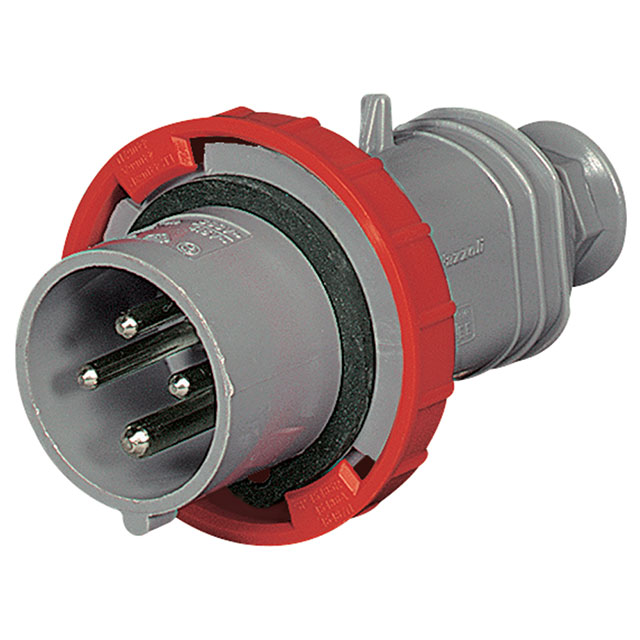

477513FX

Obsolete

LAPP

CONN P+S 30A 480 3+GND MALE

Search across all available documentation for this part.

Obsolete

LAPP

CONN P+S 30A 480 3+GND MALE

Technical Specifications

Parameters and characteristics for this part

Specification	477513FX

Approval Agency	cULus
Connector Type	Plug, Male Pins
Current Rating (Amps)	20 A
Features	Cable Clamp, Strain Relief
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	480 VAC
Voltage Rating	3 Phase

CONN P+S 30A 480 3+GND MALE

Part	Number of Positions	Mounting Type	Material Flammability Rating	Termination	Connector Type	Ingress Protection	Approval Agency	Features	Current Rating (Amps)	Voltage Rating	Voltage Rating
LAPP 477513FX	4	Free Hanging (In-Line)	UL94 V-0	Screw	Male Pins, Plug	IP67 - Dust Tight, Waterproof	cULus	Cable Clamp, Strain Relief	20 A	480 VAC	3 Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Connector Plug, Male Pins Free Hanging (In-Line)
