Q-7201W0008003M

Active

Amphenol Custom Cable

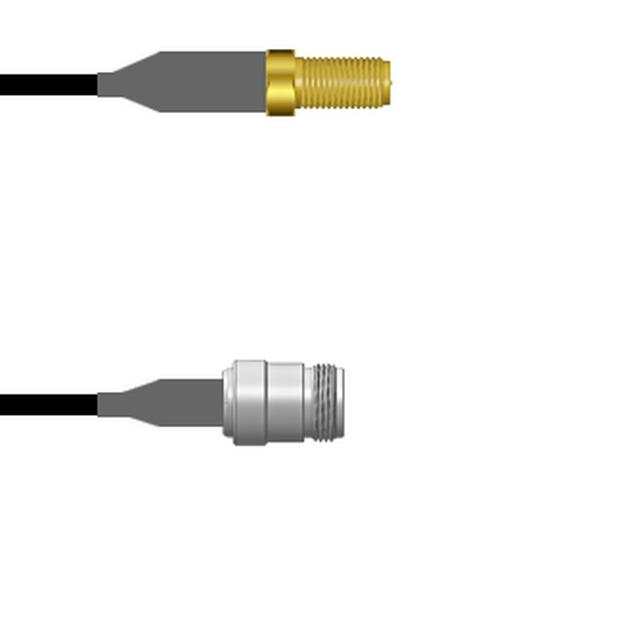

CBL ASSY RPSMA-NTYPE JK-JK 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JK-JK 9.8'

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL ASSY RPSMA-NTYPE JK-JK 9.8'

Part	1st Connector	Length	Length	Length	Color	Cable Type	Connector Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Connector	2nd Contact Gender	1st Connector Mounting Type	1st Contact Gender	Cable Impedance	Style	Features	Overall Impedance
Amphenol Custom Cable Q-7201W0008003M	RP-SMA Jack	3 m	118.1 in	9.8 '	Black	RG-58	50 Ohms	Free Hanging (In-Line)	1 GHz	N-Type Jack	Female	Free Hanging (In-Line)	Male	50 Ohms	RP-SMA to N-Type	Shielded	50 Ohms
Amphenol Custom Cable Q-7201W00081.5M	RP-SMA Jack	1.5 m	59.1 in	4.9 ft	Black	RG-58	50 Ohms	Free Hanging (In-Line)	1 GHz	N-Type Jack	Female	Free Hanging (In-Line)	Male	50 Ohms	RP-SMA to N-Type	Shielded	50 Ohms
Amphenol Custom Cable Q-7201W00082.5M	RP-SMA Jack	2.5 m	98.4 in	8.2 '	Black	RG-58	50 Ohms	Free Hanging (In-Line)	1 GHz	N-Type Jack	Female	Free Hanging (In-Line)	Male	50 Ohms	RP-SMA to N-Type	Shielded	50 Ohms
Amphenol Custom Cable Q-7201W0008002M	RP-SMA Jack	2 m	78.7 in	6.6 ft	Black	RG-58	50 Ohms	Free Hanging (In-Line)	1 GHz	N-Type Jack	Female	Free Hanging (In-Line)	Male	50 Ohms	RP-SMA to N-Type	Shielded	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to N-Type RG-58 118.1" (3.0m) 9.8'

Technical documentation and resources

No documents available
