787686-1

Active

TE Connectivity AMP Connectors

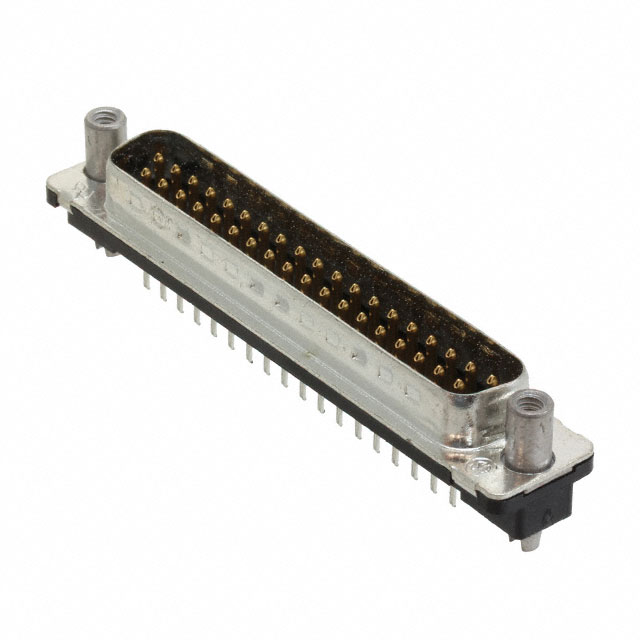

CONN D-SUB PLUG 37POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB PLUG 37POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	787686-1

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	6 A
Dielectric Material	Polyester
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	125 VDC

CONN D-SUB PLUG 37POS VERT SLDR

Part	Number of Rows	Contact Material	Connector Type	Material Flammability Rating	Current Rating (Amps)	Voltage Rating	Mounting Type	Dielectric Material	Flange Feature	Termination	Contact Type	Color	Shell Size, Connector Layout	Features	Number of Positions	Connector Style	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 787686-1	2	Phosphor Bronze	Male Pins, Plug	UL94 V-0	6 A	125 VDC	Through Hole	Polyester	Female Screwlock (4-40), Mating Side	Solder	Signal	Black	4 (DC, C)	Board Lock, Grounding Indents	37	D-Sub	Gold	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1323	$ 15.09

General part information

37 Position D-Sub Plug, Male Pins Connector
