8466 060100

Active

Belden Inc.

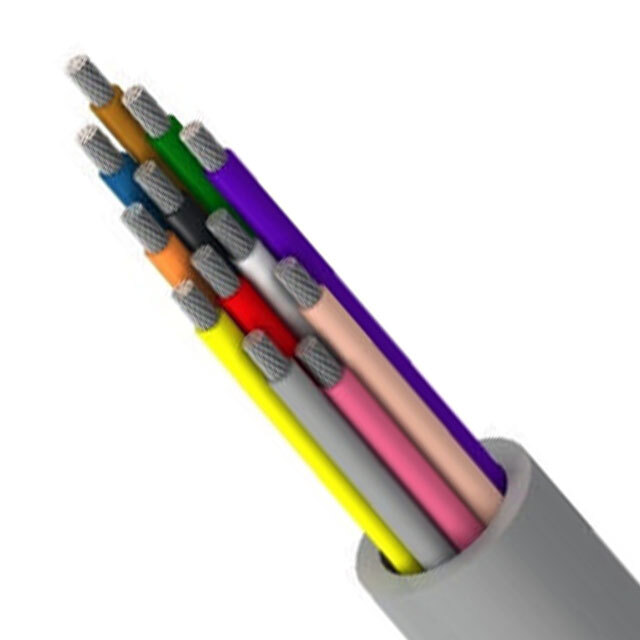

MULTICONDUCTOR CABLE, AUDIO CONTROL, UNSHIELDED, 12 CONDUCTOR, 18 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

8466 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, AUDIO CONTROL, UNSHIELDED, 12 CONDUCTOR, 18 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8466 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	10.46 mm
Jacket (Insulation) Diameter [diameter]	0.412 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

8466 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket Color	Usage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Conductor Material	Ratings	Cable Type	Length [x]	Length [x]
Belden Inc. 8466 0601000	19	30 AWG	12	300 V	10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation	1000 ft	304.8 m	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2598	Multi-Conductor
Belden Inc. 8466 060100	19	30 AWG	12		10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation			0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned		Multi-Conductor	30.5 m	100 ft
Belden Inc. 8466 0605000	19	30 AWG	12	300 V	10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation			0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2598	Multi-Conductor
Belden Inc. 8466 060500	19	30 AWG	12		10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation		15.24 m	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned		Multi-Conductor	152.4 m	50 ft 500 '
Belden Inc. 8466 060250	19	30 AWG	12	300 V	10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation	3000 "	76.2 m	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2598	Multi-Conductor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 8.68
		200	$ 8.25
		300	$ 8.01
		500	$ 7.71
		700	$ 7.51
		1000	$ 7.31
Newark	Spool of 100	1	$ 980.88
		5	$ 942.94
		10	$ 910.43

Description

General part information

8466 Series

The 8466 060100 is a 100ft 12-conductor unshielded Audio, Control and Instrumentation Cable with 18AWG stranded (19 x 30) tinned copper conductors and chrome PVC jacket and insulation. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
