FMWAN1034
ObsoleteFairview Microwave

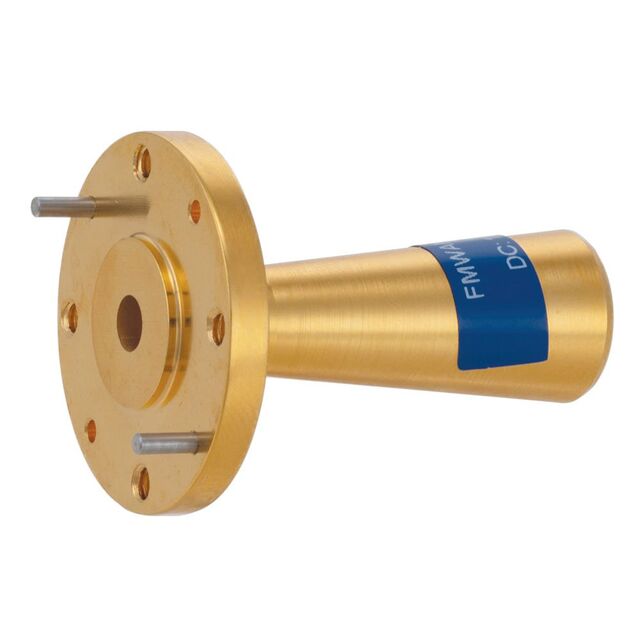

WG ANTENNA WR-19 50-58 GHZ
FMWAN1034
ObsoleteFairview Microwave
WG ANTENNA WR-19 50-58 GHZ
Description
General part information
FMWAN1034
RF ANTENNA General Purpose Horn Screw-Mount Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN1034 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 54 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 58 GHz |
| Frequency Range (Min) | 50 GHz |
| Gain | 15 dBi |
| Height (Max) | 0.525 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Screw-Mount |
| VSWR | 1.15 |
