0009185069
ObsoleteMolex

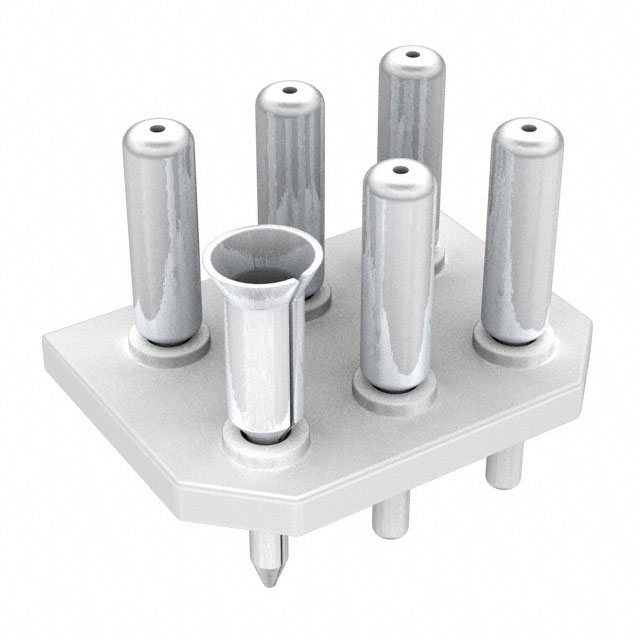

CONN HEADER VERT 6POS 5.03MM
Deep-Dive with AI
Search across all available documentation for this part.
0009185069
ObsoleteMolex
CONN HEADER VERT 6POS 5.03MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0009185069 |
|---|---|
| Applications | Telecommunications, General Purpose |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.172 in |
| Contact Length - Post | 4.37 mm |
| Contact Shape | Circular |
| Contact Type | Male Pin, Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Insulation Height | 0.093 in |
| Insulation Height | 2.38 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 5.03 mm |
| Pitch - Mating | 0.198 in |
| Row Spacing - Mating | 0.198 in |
| Row Spacing - Mating | 5.03 mm |
| Shrouding | Unshrouded |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
0009185069
Connector Header Through Hole 6 position 0.198" (5.03mm)
Documents
Technical documentation and resources
No documents available
