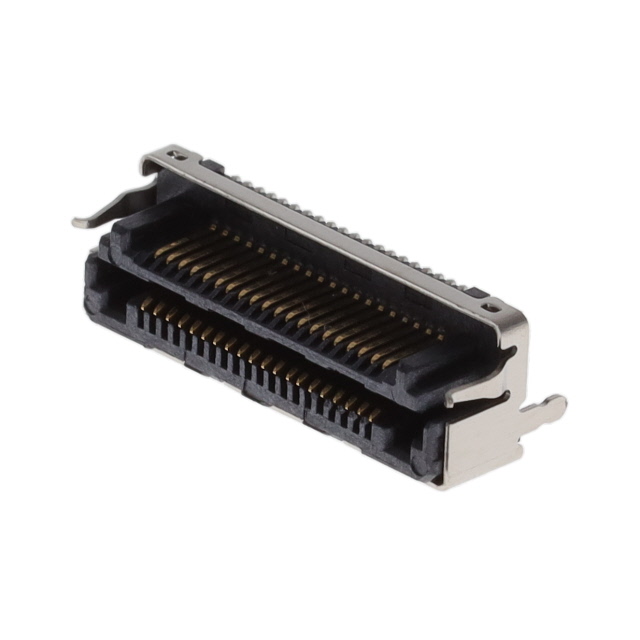

Specification	LSHM-120-02.5-S-DV-A-S-TR

Connector Type	Non-Gendered, Hermaphroditic, Self Mating
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Shielded, Board Guide
Height Above Board	0.156 in
Mated Stacking Height Options	5.5mm, 5mm, 6.5mm, 8.5mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch	0.02 in

LSHM-120 Series

Board to Board & Mezzanine Connectors 0.50 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Part	Features	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Pitch	Mounting Type	Height Above Board	Mated Stacking Height Options	Connector Type
Samtec Inc. LSHM-130-02.5-F-DV-A-N-K-TR	Board Guide Pick and Place	2	60	Gold	3 µin	0.02 in	Surface Mount	0.156 in	5.5mm 5mm 6.5mm 8.5mm	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-130-L1-L-RH-A-S-K-TR	Board Guide Pick and Place Shielded	2	60	Gold	10 Ąin	0.02 in	Reverse Right Angle Surface Mount	0.202 in		Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-140-06.0-S-DV-A-N-K-TR	Board Guide Pick and Place	2	80	Gold	30 µin	0.02 in	Surface Mount	0.293 in	10mm 12mm 8.5mm 9mm	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-120-L1-S-RH-A-S-K-TR	Board Guide Pick and Place Shielded	2	40	Gold	30 µin	0.02 in	Reverse Right Angle Surface Mount	0.202 in		Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-130-02.5-L-DV-A-N-K-TR	Board Guide Pick and Place	2	60	Gold	10 Ąin	0.02 in	Surface Mount	0.156 in	5.5mm 5mm 6.5mm 8.5mm	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-140-01-L-DH-A-S-TR	Board Guide Shielded	2	80	Gold	10 Ąin	0.02 in	Right Angle Surface Mount	0.202 in		Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-110-01-F-RH-A-S-K-TR	Board Guide Pick and Place Shielded	2	20	Gold	3 µin	0.02 in	Reverse Right Angle Surface Mount	0.202 in		Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-105-01-L-RH-A-S-K-TR	Board Guide Pick and Place Shielded	2	10	Gold	10 Ąin	0.02 in	Reverse Right Angle Surface Mount	0.202 in		Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-110-04.0-F-DV-A-N-TR	Board Guide	2	20	Gold	3 µin	0.02 in	Surface Mount	0.215 in	10mm 6.5mm 7mm 8mm	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSHM-110-L2.5-F-DV-A-N-K-TR	Board Guide Pick and Place	2	20	Gold	3 µin	0.02 in	Surface Mount	0.156 in	5.5mm 5mm 6.5mm 8.5mm	Hermaphroditic Non-Gendered Self Mating

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding

LSHM Datasheet

LSHM Series Other Related Documents 03

LSHM-120-02.5-S-DV-A-S-TR | Datasheet
