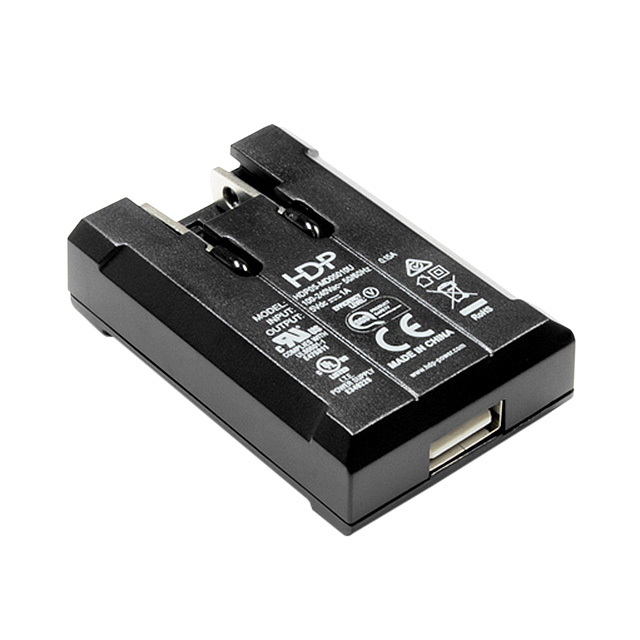

HDP05-MD-BUSB-4

Active

HDP Power

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

HDP Power

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Current - Output (Max) [Max]	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Form	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Voltage - Output	Power (Watts)	Efficiency	Region Utilized	Applications
HDP Power HDP05-MD-WUSB-4	1 A	Multi-Blade (Sold Separately)	1.64 in	60.3 mm	0.73 in	2.37 in	18.5 mm	41.8 mm	Wall Mount (Class II)	C-Tick, CB, CE, cULus, SAA	90 VAC	264 VAC	Multi-Blade	5 V	5 W	Level VI	International	ITE (Commercial), Medical
HDP Power HDP05-MD-BUSB-4	1 A	Multi-Blade (Sold Separately)	1.64 in	60.3 mm	0.73 in	2.37 in	18.5 mm	41.8 mm	Wall Mount (Class II)	C-Tick, CB, CE, cULus, SAA	90 VAC	264 VAC	Multi-Blade	5 V	5 W	Level VI	International	ITE (Commercial), Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input

Technical documentation and resources
