2631163851
ActiveFair-Rite Products Corp.

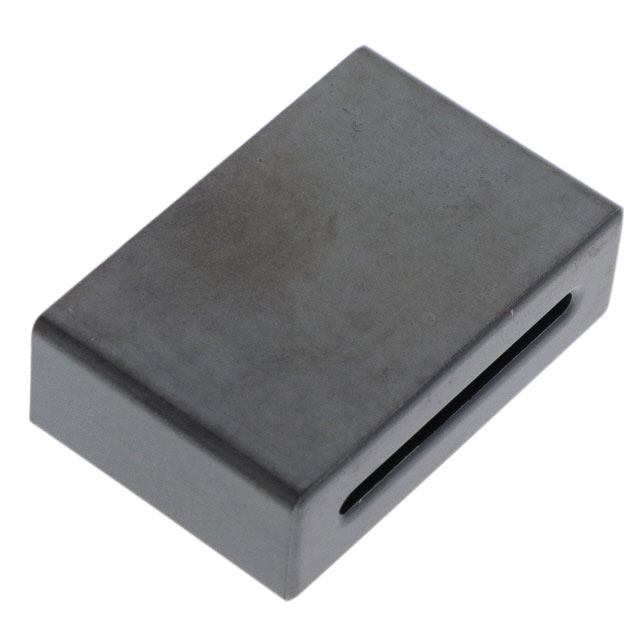

31 FULL FLAT CABLE CORE
2631163851
ActiveFair-Rite Products Corp.
31 FULL FLAT CABLE CORE
Description
General part information
2631163851
Solid Free Hanging Ferrite Core 240Ohm @ 100MHz ID 1.050" W x 0.075" H (26.67mm x 1.91mm) OD 1.500" W x 0.475" H (38.10mm x 12.07mm) Length 1.000" (25.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2631163851 |
|---|---|
| Design | Solid |
| Impedance | 240 Ohm |
| Inner Dimension Height | 0.075 in |
| Inner Dimension Width | 1.05 in |
| Length | 25.4 mm |
| Material | 31 |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.475 in |
| Outer Dimension Width | 1.5 in |
| Type | Flat |
