FMCA1973-12
ActiveFairview Microwave
CBL ASSY SMAPLUG-1.85MMPLUG 12
FMCA1973-12
ActiveFairview Microwave
CBL ASSY SMAPLUG-1.85MMPLUG 12
Description
General part information
FMCA1973-12

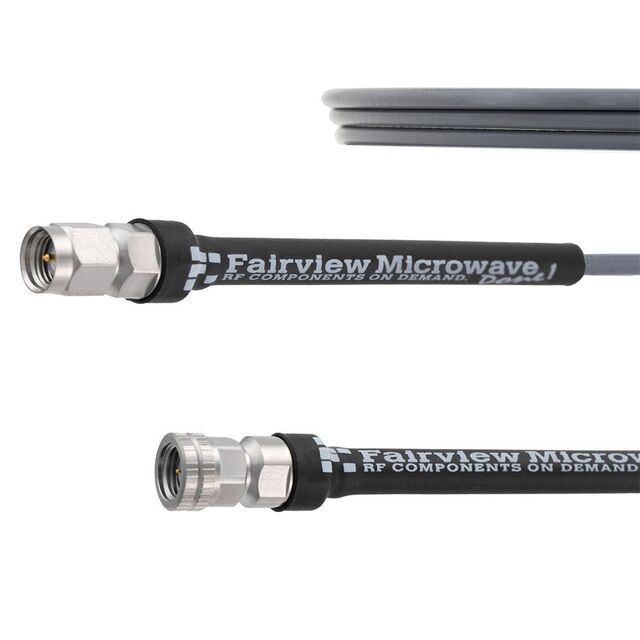

Cable Assembly Coaxial 1.85mm to SMA FM-103FLEX 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1973-12 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 1.85 mm |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 103FLEX, FM |
| Color | Gray |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 26.5 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -45 °C |
| Overall Impedance | 50 Ohms |
| Style | 1.85mm to SMA |
