FMCA1058-6
ObsoleteFairview Microwave
CBL ASSY HMCX32 1.2PLUG-HMCX32 1
FMCA1058-6
ObsoleteFairview Microwave
CBL ASSY HMCX32 1.2PLUG-HMCX32 1
Description
General part information
FMCA1058-6

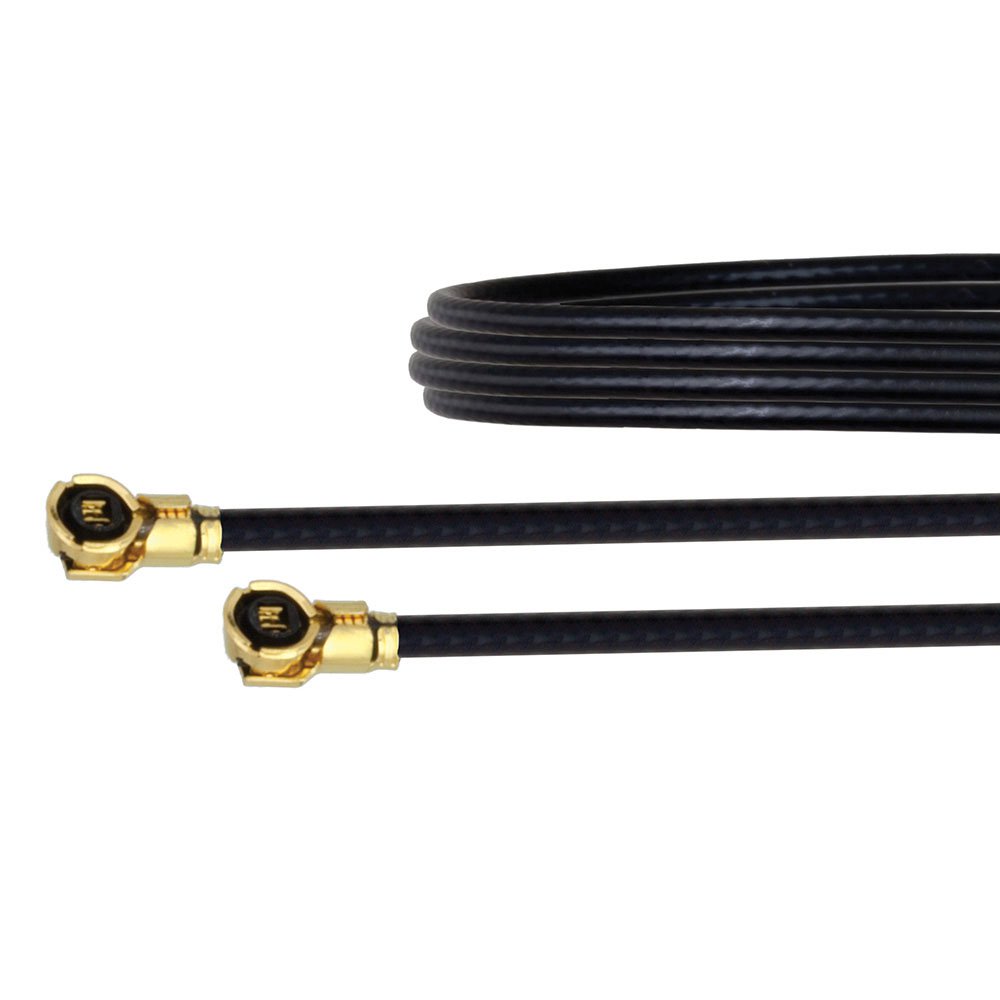

Cable Assembly Coaxial HMCX to HMCX 0.81mm OD Coaxial Cable 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1058-6 |
|---|---|
| 1st Connector | HMCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HMCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.81 mm |
| Cable Type | Coaxial Cable, 0.81mm OD Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 0.81 mm |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | HMCX |
