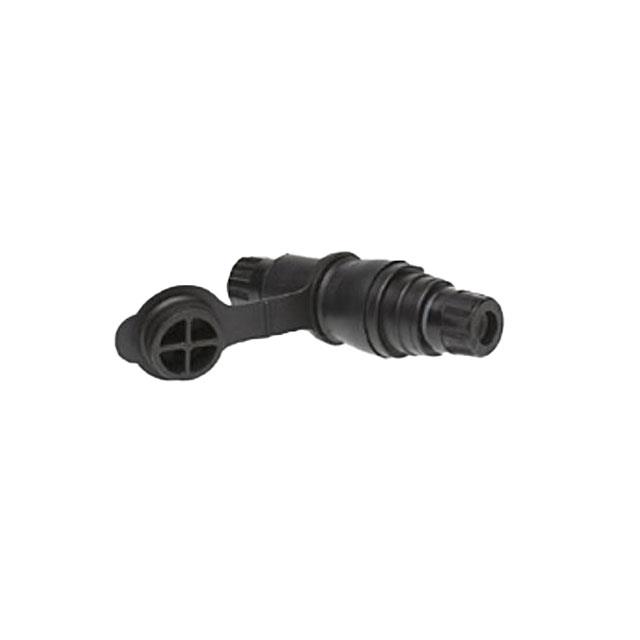

Specification	1301470045

Approval Agency	UL, CSA
Connector Style	NEMA L5-20R
Connector Type	Female Sockets, Plug
Current Rating	20 A
Features	Cord Grip, Strain Relief, Cover, Locking Blade
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Termination	Screw
Voltage Rating	125 V

130147 Series

Watertite Extreme Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 4 Pole/5 Wire, Neman L21-30, 3ø 208V, F4

...

Part	Termination	Connector Type	Voltage Rating	Approval Agency	Mounting Type	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Connector Style	Features	Current Rating	Voltage Rating (Option 2)	Voltage Rating (Option 1)	Voltage Rating (Phase)	Voltage Rating (Maximum)	Voltage Rating (Minimum)
Molex 1301470117	Screw	Female Sockets Plug	208 VAC	CSA	Free Hanging (In-Line)	5	Dust Tight Waterproof	IP67	NEMA L21-30P	Cord Grip Locking Blade Strain Relief	30 A
Molex 1301470245
Molex 1301470005	Screw	Male Blades Receptacle	277 VAC	CSA UL	Wall Mount	3	Dust Tight Waterproof	IP67	NEMA L7-30P	Flip Lid Locking Blade	30 A
Molex 1301470071	Screw	Male Blades Plug		CSA UL	Free Hanging (In-Line)	4	Dust Tight Waterproof	IP67	NON-NEMA (4P4W)	Cord Grip Locking Blade Strain Relief	30 A	208 VAC	120 VAC
Molex 1301470023	Screw	Male Blades Plug	277 VAC	CSA UL	Free Hanging (In-Line)	3	Dust Tight Waterproof	IP67	NEMA L7-20P	Cord Grip Locking Blade Strain Relief	20 A
Molex 1301470069	Screw	Male Blades Plug		CSA UL	Free Hanging (In-Line)	3	Dust Tight Waterproof	IP67	NON-NEMA (3P3W)	Cord Grip Locking Blade Strain Relief	30 A	250 VAC	125 VAC
Molex 1301470082	Screw	Male Blades Plug	480 VAC 480 VAC	CSA UL	Free Hanging (In-Line)	4	Dust Tight Waterproof	IP67	NEMA L16-30P	Cord Grip Locking Blade Strain Relief UV Resistant	30 A			3 Phase
Molex 1301470178	Screw	Female Sockets Receptacle		CSA UL	Wall Mount	5	Dust Tight Waterproof	IP67	NEMA L22-30R	Flip Lid Locking Blade	30 A			3 Phase	480 V	277 V
Molex 1301470175	Screw	Female Sockets Receptacle	480 VAC 480 VAC	CSA UL	Wall Mount	4	Dust Tight Waterproof	IP67	NEMA L16-30R	Flip Lid Locking Blade	30 A			3 Phase
Molex 1301470026	Screw	Male Blades Plug		CSA UL	Free Hanging (In-Line)	4	Dust Tight Waterproof	IP67	NEMA L14-20P	Cord Grip Locking Blade Strain Relief UV Resistant	20 A	250 VAC	125 VAC
