MCP73833-BZI/MF

Active

Microchip Technology

LINEAR CHARGE MANAGEMENT CONTROLLER LI-ION/LI-POL 1MA 4.2V/4.35V/4.4V/4.5V 10-PIN DFN EP TUBE

Find alt

Alpha

MCP73833-BZI/MF

Active

Microchip Technology

LINEAR CHARGE MANAGEMENT CONTROLLER LI-ION/LI-POL 1MA 4.2V/4.35V/4.4V/4.5V 10-PIN DFN EP TUBE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCP73833 Series

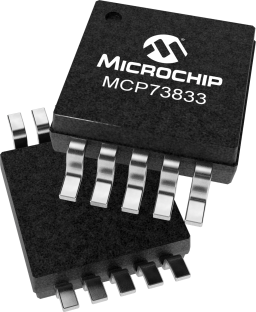

1A output current linear charge management controller. Includes integrated pass transistor, integrated current sensing, and reverse discharge protection. Also includes safety features such as cell temperature monitoring, on-chip thermal regulation and safety timers. Available in 10-pin 3mm x 3mm DFN package and 10-pin MSOP package

Technical Specifications

Parameters and characteristics for this part

Specification	MCP73833-BZI/MF

Battery Chemistry	Polymer, Lithium Ion
Battery Pack Voltage	4.2 V
Charge Current - Max	1.1 A
Current - Charging	Constant, Programmable
Fault Protection	Over Temperature
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	10-VFDFN Exposed Pad
Package Length	3 mm
Package Name	10-DFN
Package Width	3 mm
Programmable Features	Current
Voltage - Supply (Max)	6 V

MCP73833 Series

Stand-Alone Linear Li-Ion/Li-Polymer Charge Management Controller

Part	Fault Protection	Package Length	Package Name	Package Width	Battery Pack Voltage	Current - Charging	Charge Current - Max	Number of Cells	Battery Chemistry	Programmable Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Max)	Mounting Type	Package / Case
Microchip Technology MCP73833-BZI/UN	Over Temperature	0.118 in	10-MSOP 10-TFSOP	3 mm	4.2 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount
Microchip Technology MCP73833-FCI/UN	Over Temperature	0.118 in	10-MSOP 10-TFSOP	3 mm	4.2 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount
Microchip Technology MCP73833T-FCI/MF	Over Temperature	3 mm	10-DFN	3 mm	4.2 V	Constant Programmable	1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount	10-VFDFN Exposed Pad
Microchip Technology MCP73833T-NVI/MF	Over Temperature	3 mm	10-DFN	3 mm	4.35 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount	10-VFDFN Exposed Pad
Microchip Technology MCP73833T-CNI/UN	Over Temperature	0.118 in	10-MSOP 10-TFSOP	3 mm	4.2 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount
Microchip Technology MCP73833-FCI/MF	Over Temperature	3 mm	10-DFN	3 mm	4.2 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount	10-VFDFN Exposed Pad
Microchip Technology MCP73833-NVI/UN	Over Temperature	0.118 in	10-MSOP 10-TFSOP	3 mm	4.35 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount
Microchip Technology MCP73833-CNI/UN	Over Temperature	0.118 in	10-MSOP 10-TFSOP	3 mm	4.2 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount
Microchip Technology MCP73833T-NVI/UN	Over Temperature	0.118 in	10-MSOP 10-TFSOP	3 mm	4.35 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount
Microchip Technology MCP73833-GPI/UN	Over Temperature	0.118 in	10-MSOP 10-TFSOP	3 mm	4.2 V	Constant Programmable	1.1 A	1	Lithium Ion Polymer	Current	85 °C	-40 °C	6 V	Surface Mount
