45-2D36.2820.000

Active

EAO

CONFIG SWITCH BODY E-STOP ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SWITCH BODY E-STOP ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-2D36.2820.000	45-2D36 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	E-Stop, Round	E-Stop, Round
Illumination	-	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 mm
Requires	Illumination Source, Contact Block(s)	Contact Block(s), Illumination Source
Type	Maintained	Maintained

CONFIG SW BODY E-STOP NON-ILLUM

Part	Type	Actuator Type	Requires	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions	Illumination
EAO 45-2D36.2920.000	Maintained	E-Stop, Round	Contact Block(s)	45, EAO	22.3 mm	Non-Illuminated
EAO 45-2D36.1820.000	Maintained	E-Stop, Round	Contact Block(s), Illumination Source	45, EAO	22.3 mm
EAO 45-2D36.2820.000	Maintained	E-Stop, Round	Contact Block(s), Illumination Source	45, EAO	22.3 mm
EAO 45-2D36.1A20.000	Maintained	E-Stop, Round	Contact Block(s), Illumination Source	45, EAO	22.3 mm
EAO 45-2D36.2A20.000	Maintained	E-Stop, Round	Contact Block(s)	45, EAO	22.3 mm	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

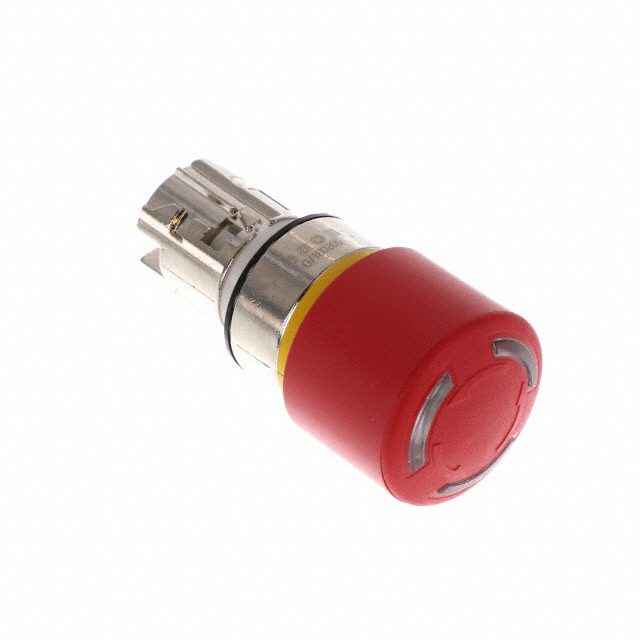

Configurable Switch Body E-Stop, Round Illuminated - Red
