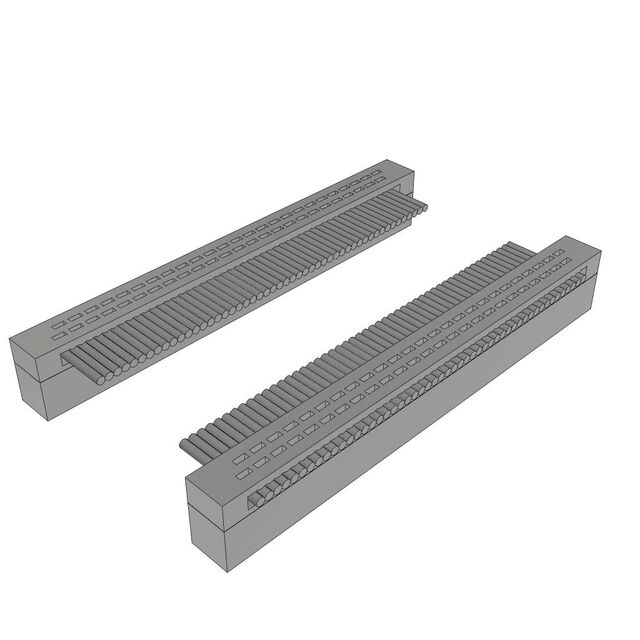

FFTP-25-D-18.00-01-F-N

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFFTP Datasheet Datasheet

FFTP-25-D-18.00-01-F-N

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Deep-Dive with AI

DocumentsFFTP Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFTP-25-D-18.00-01-F-N

Cable Termination	IDC
Color	Multiple, Twisted Pair (Round)
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFTP-25 Series

Part	Contact Finish	Number of Positions	Color	Cable Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable [x]	Pitch - Cable	Pitch - Connector	Pitch - Connector	Features	Shielding	Length	Length	Length	Connector Type	Length [x]	Length [x]
Samtec Inc. FFTP-25-D-03.85-01-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	3.85 "	0.321 '	97.79 mm	Socket to Socket
Samtec Inc. FFTP-25-D-03.85-01-N-R	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	3.85 "	0.321 '	97.79 mm	Socket to Socket Reversed
Samtec Inc. FFTP-25-D-08.77-01-F-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	8.77 in	0.731 ft	222.76 mm	Socket to Socket
Samtec Inc. FFTP-25-D-08.77-01-N-R	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	8.77 in	0.731 ft	222.76 mm	Socket to Socket Reversed
Samtec Inc. FFTP-25-D-18.00-01-F-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded				Socket to Socket	457.2 mm	1.5 ft
Samtec Inc. FFTP-25-D-18.00-01-F-N-R	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded				Socket to Socket Reversed	457.2 mm	1.5 ft
Samtec Inc. FFTP-25-D-03.85-01-F-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	3.85 "	0.321 '	97.79 mm	Socket to Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.14
		10	$ 45.85
		25	$ 41.63
		50	$ 38.79
		100	$ 36.22
		250	$ 33.19

Description

General part information

FFTP-25 Series

50 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)

Documents

Technical documentation and resources

FFTP Datasheet

Datasheet
