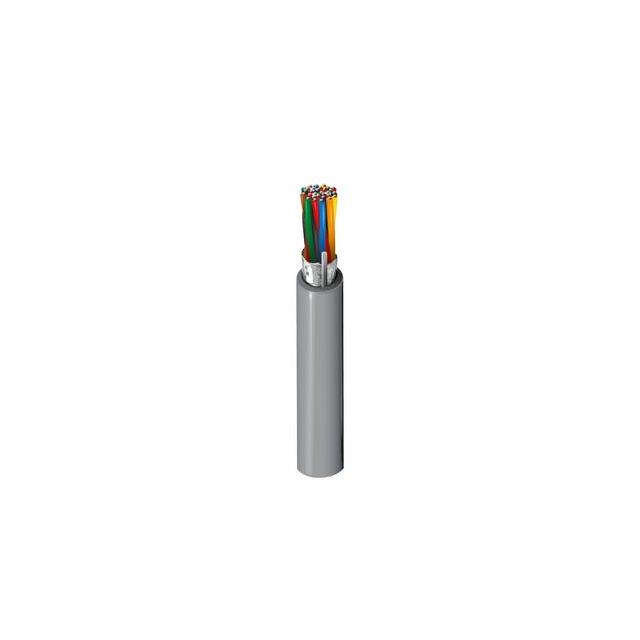

9515 060500

Active

Belden Inc.

MULTI-PAIR 30COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 30COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9515 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.417 in
Jacket (Insulation) Diameter [diameter]	10.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	30 (15 Pair Twisted)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Features	Ratings	Conductor Material	Cable Type	Number of Conductors	Jacket Color	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Shield Type	Shield Coverage	Conductor Insulation	Voltage
Belden Inc. 9515 060500	Drain Wire	UL Style 2464	Copper Tinned	Multi-Pair	30 (15 Pair Twisted)	Chrome	500 '	152.4 m	0.864 mm	0.034 in	-30 ░C	80 C	Computer	32 AWG	7	24 AWG	Poly-Vinyl Chloride (PVC)	0.417 in	10.59 mm	Aluminum	Foil	100 %	Poly-Vinyl Chloride (PVC)	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 8.59

General part information

30 (15 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 500.0' (152.4m)
