5151020805F

Active

DIALIGHT

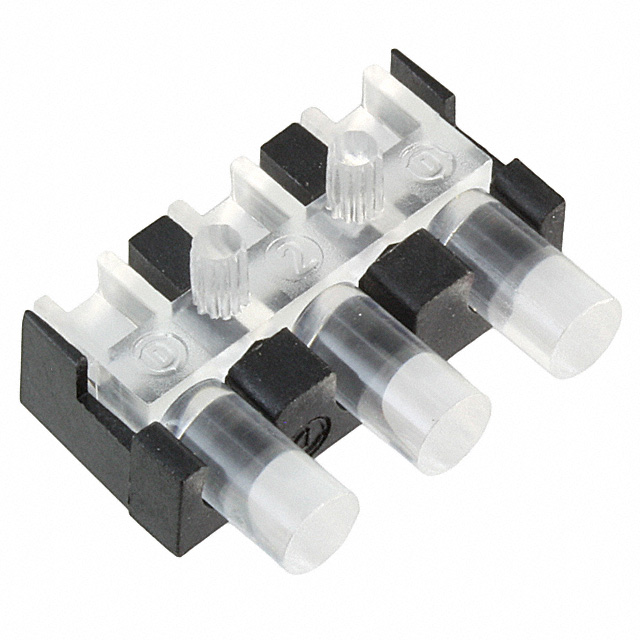

LIGHT PIPE 3 ELEMENT SHIELDED

Search across all available documentation for this part.

Active

DIALIGHT

LIGHT PIPE 3 ELEMENT SHIELDED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5151020805F	5151020 Series

Color	Clear	Clear, Diffused
Configuration	3 Wide	4 Wide, 3 Wide, 2 Wide
Lens Size	3.56 mm	1.63 - 3.56 mm
Mounting Type	Board Mount, Right Angle, Press Fit	Board Mount, Right Angle, Press Fit
Type	Rigid	Rigid

LIGHT PIPE 11.06MM 4 ELEMENT

Part	Type	Color	Configuration	Mounting Type	Lens Size
DIALIGHT 5151020807F	Rigid	Clear, Diffused	4 Wide	Board Mount, Press Fit, Right Angle	3.56 mm
DIALIGHT 5151020806F	Rigid	Clear	4 Wide	Board Mount, Press Fit, Right Angle	3.56 mm
DIALIGHT 5151020802F	Rigid	Clear
DIALIGHT 5151020805F	Rigid	Clear	3 Wide	Board Mount, Press Fit, Right Angle	3.56 mm
DIALIGHT 5151020804F	Rigid	Clear	2 Wide	Board Mount, Press Fit, Right Angle	1.63 mm
DIALIGHT 5151020F	Rigid	Clear	4 Wide	Board Mount, Press Fit, Right Angle	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Light Pipe 3 Wide Clear Rigid Board Mount, Press Fit, Right Angle
