SW45 BK008
ActiveALPHA WIRE

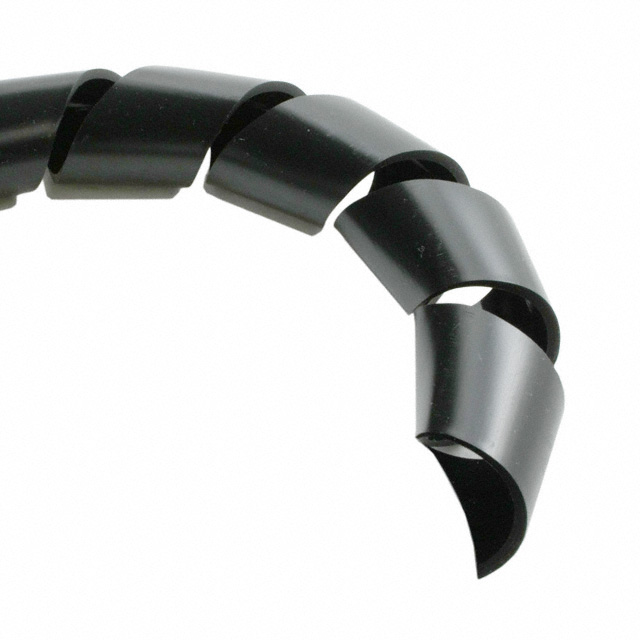

SPIRAL WRAP 0.84" X 25' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
SW45 BK008
ActiveALPHA WIRE
SPIRAL WRAP 0.84" X 25' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SW45 BK008 | SW45 Series |
|---|---|---|
| Color | Black | Black |
| Diameter - Inside, Non-Expanded [diameter] | 21.34 mm | 21.34 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.84 in | 0.84 in |
| Diameter - Outside, Non-Expanded [diameter] | 25.4 mm | 25.4 mm |
| Diameter - Outside, Non-Expanded [diameter] | 1 " | 1 " |
| Environment Protection | UV Resistant | UV Resistant |
| Length | - | 100 ft |
| Length | - | 30.48 m |
| Length [x] | 25 ft | 25 - 500 ft |
| Length [x] | 7.62 m | 7.62 - 152.4 m |
| Liquid Protection | Moisture Resistant | Moisture Resistant |
| Material | Polyethylene (PE) | Polyethylene (PE) |
| Operating Temperature [custom] | -66 °C, 88 °C | -66 - 88 °C |
| Type | Spiral Wrap | Spiral Wrap |
| Type Attributes | Harness | Harness |
| Wall Thickness | 2.03 mm | 2.03 mm |
| Wall Thickness | 0.08 in | 0.08 in |
SW45 Series
SPIRAL WRAP 0.84" X 25' BLACK
| Part | Material | Environment Protection | Type Attributes | Type | Wall Thickness | Wall Thickness | Diameter - Inside, Non-Expanded [diameter] | Diameter - Inside, Non-Expanded [diameter] | Operating Temperature [custom] | Liquid Protection | Color | Length [x] | Length [x] | Diameter - Outside, Non-Expanded [diameter] | Diameter - Outside, Non-Expanded [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE SW45 BK008 | Polyethylene (PE) | UV Resistant | Harness | Spiral Wrap | 2.03 mm | 0.08 in | 21.34 mm | 0.84 in | -66 °C, 88 °C | Moisture Resistant | Black | 25 ft | 7.62 m | 25.4 mm | 1 " | ||
ALPHA WIRE SW45 BK005 | Polyethylene (PE) | UV Resistant | Harness | Spiral Wrap | 2.03 mm | 0.08 in | 21.34 mm | 0.84 in | -66 °C, 88 °C | Moisture Resistant | Black | 25.4 mm | 1 " | 100 ft | 30.48 m | ||
ALPHA WIRE SW45 BK002 | Polyethylene (PE) | UV Resistant | Harness | Spiral Wrap | 2.03 mm | 0.08 in | 21.34 mm | 0.84 in | -66 °C, 88 °C | Moisture Resistant | Black | 500 ' | 152.4 m | 25.4 mm | 1 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 154.33 | |
| 5 | $ 144.68 | |||
| 10 | $ 135.04 | |||
| 25 | $ 128.28 | |||
| 50 | $ 125.39 | |||
| 100 | $ 122.50 | |||
Description
General part information
SW45 Series
Spiral Wrap 1.000" (25.40mm) X 25.00' (7.62m) Black
