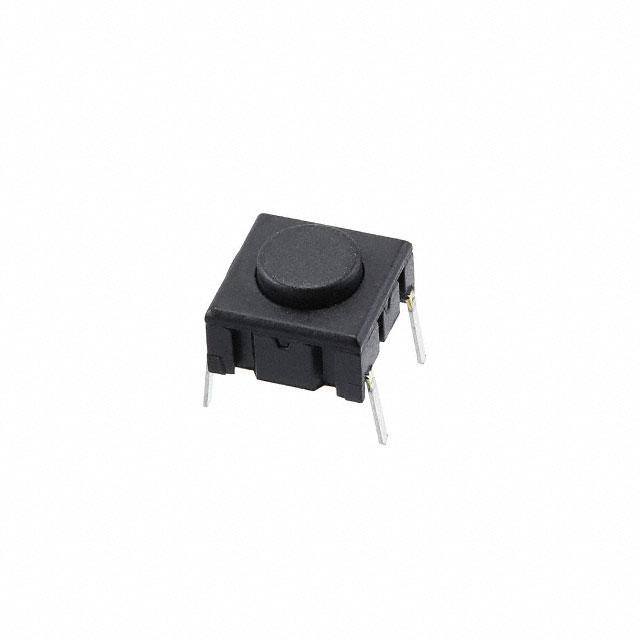

3CTH9

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMEC Catalog Datasheet

3CTH9

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsMEC Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.24
		10	$ 3.06
		50	$ 2.58
		100	$ 2.41
		250	$ 2.18
		500	$ 2.02
		1000	$ 1.88
		2500	$ 1.71
		5000	$ 1.64

Description

General part information

- Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

MEC Catalog

Datasheet

Specification	3CTH9	- Series

Actuator Height off PCB, Vertical	-	10.4 mm
Actuator Height off PCB, Vertical [z]	6.4 mm	6.4 mm
Actuator Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS), Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Plunger for Cap, Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Force	300 gf	300 gf
Operating Temperature [Max]	160 °C	115 - 160 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	PC Pin	Gull Wing, PC Pin

Part

Switch Function

Termination Style

Mounting Type

Circuit

Actuator Type

Ingress Protection

Actuator Height off PCB, Vertical

Operating Temperature [Min]

Operating Temperature [Max]

Operating Force

Actuator Orientation

Contact Rating @ Voltage

Mechanical Life

Outline [x]

Outline [y]

Actuator Material

Illumination

Features

Switch Travel

Actuator Height off PCB, Vertical [z]

MEC Switches

3FSH9

Off-Mom

Gull Wing

Surface Mount

SPST-NO

Plunger for Cap

IP67 - Dust Tight, Waterproof

10.4 mm

-40 °C

160 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polyphenylene Sulfide (PPS)

Non-Illuminated

Sealed - Flux Protection

1 mm

MEC Switches

3ATL6

Off-Mom

PC Pin

Through Hole

SPST-NO

Plunger for Cap

IP67 - Dust Tight, Waterproof

-40 °C

115 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polybutylene Terephthalate (PBT)

Non-Illuminated

Sealed - Flux Protection

1 mm

6.4 mm

MEC Switches

3ATH9

Off-Mom

PC Pin

Through Hole

SPST-NO

Plunger for Cap

IP67 - Dust Tight, Waterproof

-40 °C

160 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polyphenylene Sulfide (PPS)

Non-Illuminated

Sealed - Flux Protection

1 mm

6.4 mm

MEC Switches

3CTH9

Off-Mom

PC Pin

Through Hole

SPST-NO

Standard

IP67 - Dust Tight, Waterproof

-40 °C

160 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polyphenylene Sulfide (PPS)

Non-Illuminated

Sealed - Flux Protection

1 mm

6.4 mm

MEC Switches

3ETL9

Off-Mom

PC Pin

Through Hole

SPST-NO

Plunger for Cap

IP67 - Dust Tight, Waterproof

-40 °C

115 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polybutylene Terephthalate (PBT)

Non-Illuminated

Sealed - Flux Protection

1 mm

MEC Switches

3CTL6

Off-Mom

PC Pin

Through Hole

SPST-NO

Standard

IP67 - Dust Tight, Waterproof

-40 °C

115 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polybutylene Terephthalate (PBT)

Non-Illuminated

Sealed - Flux Protection

1 mm

6.4 mm

MEC Switches

3CSH9

Off-Mom

Gull Wing

Surface Mount

SPST-NO

Standard

IP67 - Dust Tight, Waterproof

-40 °C

160 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polyphenylene Sulfide (PPS)

Non-Illuminated

Sealed - Flux Protection

1 mm

6.4 mm

MEC Switches

3ESH9

Off-Mom

Gull Wing

Surface Mount

SPST-NO

Plunger for Cap

IP67 - Dust Tight, Waterproof

-40 °C

160 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polyphenylene Sulfide (PPS)

Non-Illuminated

Sealed - Flux Protection

1 mm

MEC Switches

3ASH9

Off-Mom

Gull Wing

Surface Mount

SPST-NO

Plunger for Cap

IP67 - Dust Tight, Waterproof

-40 °C

160 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polyphenylene Sulfide (PPS)

Non-Illuminated

Sealed - Flux Protection

1 mm

6.4 mm

MEC Switches

3ETH9

Off-Mom

PC Pin

Through Hole

SPST-NO

Plunger for Cap

IP67 - Dust Tight, Waterproof

-40 °C

160 °C

300 gf

Top Actuated

0.05 A, 24 VDC

10000000 Cycles

10.1 mm

Polybutylene Terephthalate (PBT)

Non-Illuminated

Sealed - Flux Protection

1 mm

Part	Switch Function	Termination Style	Mounting Type	Circuit	Actuator Type	Ingress Protection	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Actuator Orientation	Contact Rating @ Voltage	Mechanical Life	Outline [x]	Outline [y]	Actuator Material	Illumination	Features	Switch Travel	Actuator Height off PCB, Vertical [z]
MEC Switches 3FSH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof	10.4 mm	-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm
MEC Switches 3ATL6	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	115 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ATH9	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3CTH9	Off-Mom	PC Pin	Through Hole	SPST-NO	Standard	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ETL9	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	115 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm
MEC Switches 3CTL6	Off-Mom	PC Pin	Through Hole	SPST-NO	Standard	IP67 - Dust Tight, Waterproof		-40 °C	115 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3CSH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Standard	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ESH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm
MEC Switches 3ASH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ETH9	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm
