FMAD-MRYB-2010

Active

SCHURTER Inc.

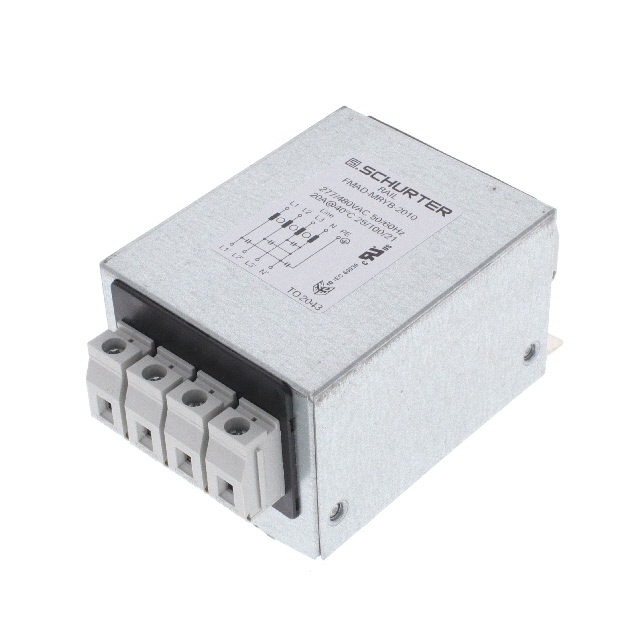

LINE FILTER 277/480VAC 20A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMAD-MRYB-2010

Active

SCHURTER Inc.

LINE FILTER 277/480VAC 20A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.44
		50	$ 44.38
		100	$ 39.44

Description

General part information

FMAD Series

Three Phase (Wye) EMC/EMI Line Filter 20 A 277V, 480V 50/60Hz Single Stage Terminal Block

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMAD-MRYB-2010	FMAD Series

Applications	General Purpose	Photovoltaic Inverter, General Purpose
Approval Agency	cURus, VDE, ENEC	cURus, VDE, ENEC, cURus, VDE, cURus, ENEC
Configuration	Single Stage	Single Stage
Current	20 A	3 - 250 A
Filter Type	Three Phase (Wye)	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	-	1.8 - 900 µH
Mounting Type	Chassis Mount	Chassis Mount, DIN Rail
Operating Temperature	-	85 - 100 °C
Operating Temperature	-	-40 °C
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Terminal Block	Terminal Block, Screw Clamp
Voltage - Rated AC	277 V, 480 V	277 - 480 V
Voltage - Rated AC	-	520 V
Voltage - Rated AC	-	300 V

FMAD Series

LINE FILTER 300V/520VAC 20A CHAS

Part	Approval Agency	Current	Mounting Type	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Applications	Operating Temperature [custom]	Inductance	Voltage - Rated AC
SCHURTER Inc. FMAD-34SZ-2042.SP	cURus, ENEC, VDE	20 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	Photovoltaic Inverter
SCHURTER Inc. FMAD-36SZ-1042.SP	cURus, ENEC, VDE	10 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	Photovoltaic Inverter
SCHURTER Inc. FMAD-0956-H310	cURus, VDE	250 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage			Terminal Block			General Purpose	-25 °C, 100 °C	200 µH	277 V, 480 V
SCHURTER Inc. FMAD-36SZ-0642.HP	cURus, ENEC, VDE	6 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	Photovoltaic Inverter
SCHURTER Inc. FMAD-34SZ-1042.SP	cURus, ENEC, VDE	10 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	Photovoltaic Inverter
SCHURTER Inc. FMAD-395A-1612	cURus, ENEC, VDE	16 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	General Purpose
SCHURTER Inc. FMAD-36SZ-2042.HP	cURus, ENEC, VDE	20 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	Photovoltaic Inverter
SCHURTER Inc. FMAD-345A-2512	cURus, ENEC, VDE	25 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	General Purpose
SCHURTER Inc. FMAD-34SZ-1642.HP	cURus, ENEC, VDE	16 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage	100 °C	-40 °C	Terminal Block	520 V	300 V	Photovoltaic Inverter
SCHURTER Inc. FMAD-0924-0610	cURus, VDE	6 A	Chassis Mount	Three Phase (Wye)	60 Hz	50 Hz	Single Stage			Terminal Block			General Purpose	-25 °C, 100 °C	9 mH	277 V, 480 V
