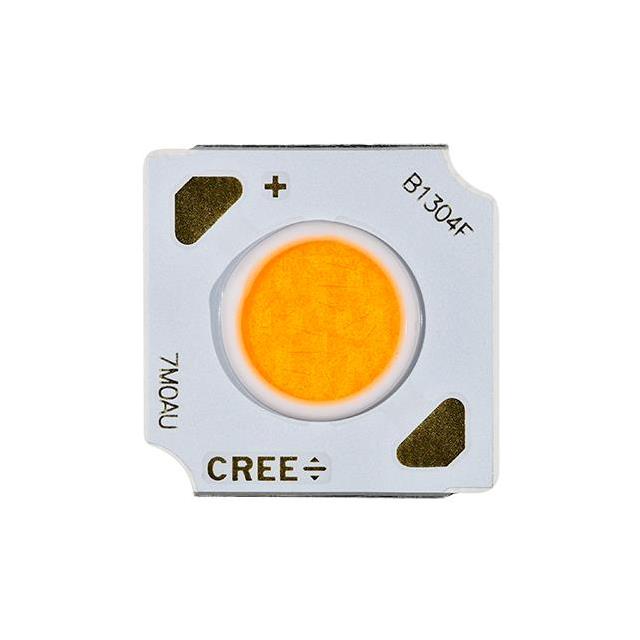

CMB1306-0000-000N0U0A27H

Active

Cree LED

LED COB XLAMP WARM WHT SQU 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB1306-0000-000N0U0A27H

Active

Cree LED

LED COB XLAMP WARM WHT SQU 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 3.71

Description

General part information

CMB1306 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1306 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMB1306-0000-000N0U0A27H	CMB1306 Series

CCT (K)	2700 K	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	Cool, White, Neutral, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	600 mA	1.2 - 600 A
Current - Test	200 mA	200 - 400 mA
Height [z]	1.75 mm	1.75 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia	6 mm Dia
Lumens/Watt @ Current - Test	123 lm/W	107 - 169 lm/W
Luminous Flux @ Current/Temperature	822 lm	711 - 1130 lm
Size / Dimension [x]	13.35 mm	13.35 mm
Size / Dimension [y]	13.35 mm	13.35 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	33.3 V	16.7 - 33.3 V

CMB1306 Series

LED COB XLAMP COOL WHT SQU 5700K

...

Part	CRI (Color Rendering Index)	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature	Temperature - Test	Voltage - Forward (Vf) (Typ)	Type	Lumens/Watt @ Current - Test	Current - Max [Max]	CCT (K)	Height [z]	Light Emitting Surface (LES) [diameter]	Color
Cree LED CMB1306-R160-000F0H0A57G	80	Flat	13.35 mm	13.35 mm	400 mA	Square	115 °	1025 lm	85 °C	16.7 V	Chip On Board (COB)	153 lm/W	1.2 A	5700 K	1.75 mm	6 mm Dia	Cool, White
Cree LED CMB1306-R160-00PF0U0A40H	90	Flat	13.35 mm	13.35 mm	400 mA	Square	115 °		85 °C	16.7 V	Chip On Board (COB)		1.2 A	4000 K	1.75 mm	6 mm Dia	Neutral, White
Cree LED CMB1306-0000-000F0U0A40H	90	Flat	13.35 mm	13.35 mm	400 mA	Square	115 °	868 lm	85 °C	16.7 V	Chip On Board (COB)	130 lm/W	1.2 A	4000 K	1.75 mm	6 mm Dia	Neutral, White
Cree LED CMB1306-0000-000N0U0A57G	90	Flat	13.35 mm	13.35 mm	200 mA	Square	115 °	924 lm	85 °C	33.3 V	Chip On Board (COB)	139 lm/W	600 mA	5700 K	1.75 mm	6 mm Dia	Cool, White
Cree LED CMB1306-0000-000N0U0A35G	90	Flat	13.35 mm	13.35 mm	200 mA	Square	115 °	865 lm	85 °C	33.3 V	Chip On Board (COB)	130 lm/W	600 mA	3500 K	1.75 mm	6 mm Dia	Warm, White
Cree LED CMB1306-0000-000F0Z0A30H	95	Flat	13.35 mm	13.35 mm	400 mA	Square	115 °	754 lm	85 °C	16.7 V	Chip On Board (COB)	113 lm/W	1.2 A	3000 K	1.75 mm	6 mm Dia	Warm, White
Cree LED CMB1306-0000-000F0B0A65E	70	Flat	13.35 mm	13.35 mm	400 mA	Square	115 °	1130 lm	85 °C	16.7 V	Chip On Board (COB)	169 lm/W	1.2 A	6500 K	1.75 mm	6 mm Dia	Cool, White
Cree LED CMB1306-R160-00PF0Z0AL7C	95	Flat	13.35 mm	13.35 mm	400 mA	Square	115 °		85 °C	16.7 V	Chip On Board (COB)		1.2 A		1.75 mm	6 mm Dia
Cree LED CMB1306-R160-00PN0Z0A40H	95	Flat	13.35 mm	13.35 mm	200 mA	Square	115 °		85 °C	33.3 V	Chip On Board (COB)		600 mA	4000 K	1.75 mm	6 mm Dia	Neutral, White
Cree LED CMB1306-R160-000F0Z0A30H	95	Flat	13.35 mm	13.35 mm	400 mA	Square	115 °	754 lm	85 °C	16.7 V	Chip On Board (COB)	113 lm/W	1.2 A	3000 K	1.75 mm	6 mm Dia	Warm, White
