S151M59S3NU83L0R
ActiveVishay Dale
CAPACITOR,CERAMIC,150PF,6KVDC,20-% TOL,20+% TOL,S3N-TC CODE,6%-TC
S151M59S3NU83L0R
ActiveVishay Dale
CAPACITOR,CERAMIC,150PF,6KVDC,20-% TOL,20+% TOL,S3N-TC CODE,6%-TC
Description
General part information
S151M59S3NU83L0R

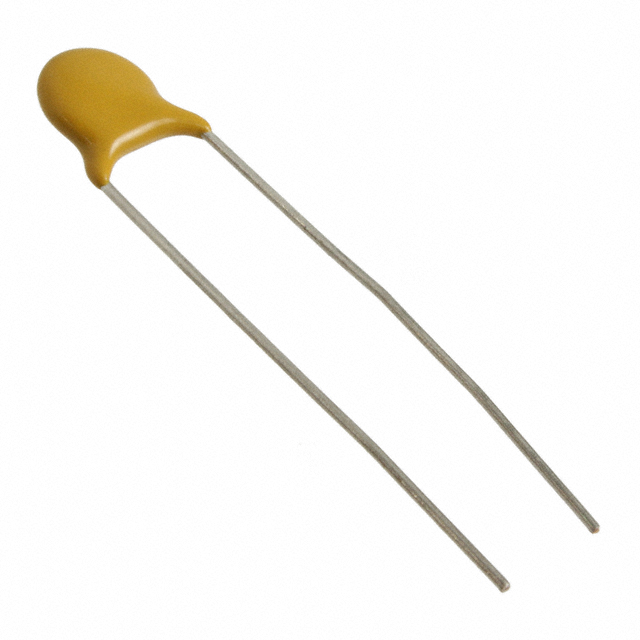

150 pF ±20% 6000V (6kV) Ceramic Capacitor S3N Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | S151M59S3NU83L0R |
|---|---|
| Applications | General Purpose |
| Capacitance | 150 pF |
| Height - Seated (Max) | 0.709 in |
| Lead Spacing | 0.394 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.591 in |
| Temperature Coefficient | S3N |
| Tolerance | 20 % |
| Voltage - Rated | 6000 V |
