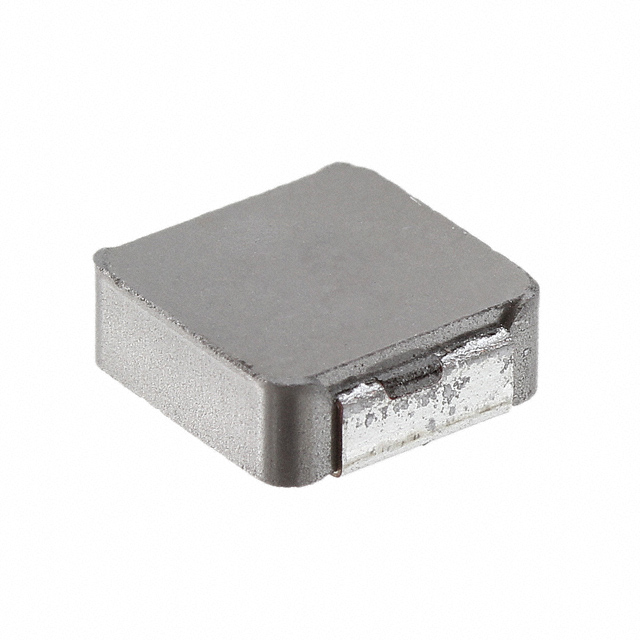

IHLP3232CZER1R0M01
ActiveVishay Dale
FIXED IND 1UH 13.7A 8.35MOHM SMD
IHLP3232CZER1R0M01
ActiveVishay Dale
FIXED IND 1UH 13.7A 8.35MOHM SMD
Description
General part information
IHLP3232CZER1R0M01
1 µH Shielded Molded Inductor 13.7 A 8.35mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IHLP3232CZER1R0M01 |
|---|---|
| Current - Saturation (Isat) | 29 A |
| Current Rating | 13.7 A |
| DC Resistance (DCR) (Max) | 8.35 mOhm |
| Frequency - Self Resonant | 51 MHz |
| Height - Seated (Max) | 0.118 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.34 in |
| Size / Dimension Width | 0.322 in |
| Tolerance | 20 % |
| Type | Molded |
