Specification	0874380662

Applications	General Purpose, Medical
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Length - Mating	0.106 in
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.175 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

087438 Series

Part	Style	Insulation Material	Contact Shape	Material Flammability Rating	Number of Positions	Contact Length - Mating	Contact Material	Contact Type	Shrouding	Fastening Type	Insulation Color	Termination	Insulation Height	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Number of Rows	Contact Finish - Mating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Pitch - Mating	Applications	Contact Finish - Post	Contact Finish Thickness - Post
Molex 0874380733	Board Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	Square	UL94 V-0	7	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin	All	Header	1	Tin-Lead	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical
Molex 0874380462	Board Cable/Wire	Glass Filled Nylon Polyamide (PA)	Square	UL94 V-0	4	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Black	Solder	0.175 in	100 µin	All	Header	1	Tin	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical	Tin
Molex 0874380443	Board Cable/Wire	Glass Filled Nylon Polyamide (PA)	Square	UL94 V-0	4	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin 100 in	All	Header	1	Tin	Right Angle Surface Mount	-55 °C -55 C	105 °C 105 C	250 V	0.059 in	General Purpose Medical	Tin
Molex 0874380363	Board Cable/Wire	Glass Filled Nylon Polyamide (PA)	Square	UL94 V-0	3	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Black	Solder	0.175 in	100 µin	All	Header	1	Tin	Right Angle Surface Mount				0.059 in	General Purpose Medical	Tin	100 Ąin

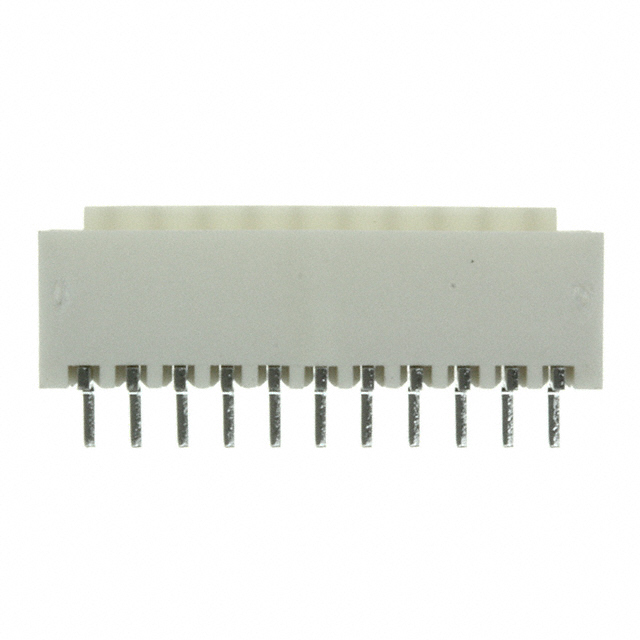

Molex 0874381133	Board Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	Square	UL94 V-0	11	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin	All	Header	1	Tin-Lead	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical
Molex 0874380433	Board Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	Square	UL94 V-0	4	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin	All	Header	1	Tin-Lead	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical
Molex 0874380243	Board Cable/Wire	Glass Filled Nylon Polyamide (PA)	Square	UL94 V-0	2	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin	All	Header	1	Tin	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical	Tin
Molex 0874380342	Board Cable/Wire	Glass Filled Nylon Polyamide (PA)	Square	UL94 V-0	3	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin	All	Header	1	Tin	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical	Tin
Molex 0874380333	Board Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	Square	UL94 V-0	3	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin	All	Header	1	Tin-Lead	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical
Molex 0874381042	Board Cable/Wire	Glass Filled Nylon Polyamide (PA)	Square	UL94 V-0	10	0.106 in	Brass Alloy	Male Pin	Shrouded - 4 Wall	Push-Pull	Beige	Solder	0.175 in	100 µin	All	Header	1	Tin	Right Angle Surface Mount	-55 °C	105 °C	250 V	0.059 in	General Purpose Medical	Tin
