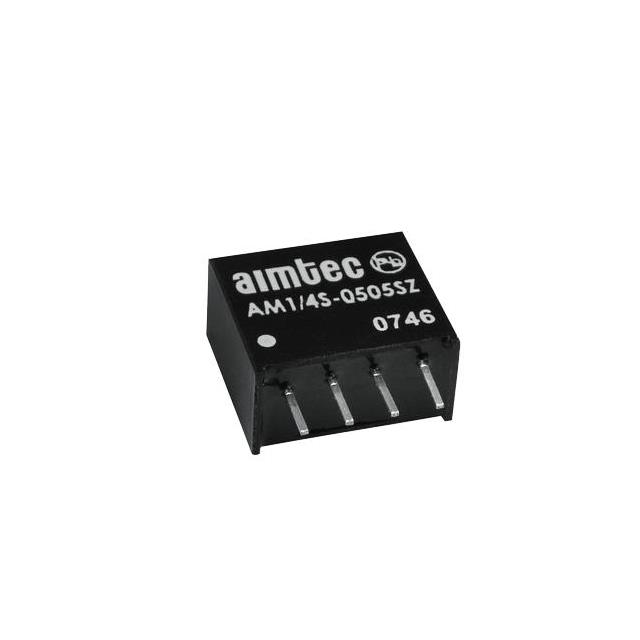

AM1/4S-0505SZ

Active

aimtec

DC DC CONVERTER 5V 250MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1/4S-0505SZ

Active

aimtec

DC DC CONVERTER 5V 250MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.36
		5	$ 4.30
		10	$ 4.23
		25	$ 4.11
		40	$ 3.99
		80	$ 3.86
		160	$ 3.74
		500	$ 3.49

Description

General part information

AM1/4S Series

Isolated Module DC DC Converter 1 Output 5V 50mA 4.5V - 5.5V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1/4S-0505SZ	AM1/4S Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output (Max) [Max]	50 mA	10.4 - 75.7 mA
Efficiency	71 %	53 - 77 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4-SIP Module	4-SIP Module
Power (Watts)	0.25 mW	0.25 - 250 mW
Size / Dimension [x]	0.46 in	0.46 in
Size / Dimension [x]	11.7 mm	11.6 - 11.7 mm
Size / Dimension [y]	6 mm	6 mm
Size / Dimension [y]	0.24 "	0.24 "
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	9.7 mm	9.7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 - 52.8 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 43.2 V
Voltage - Isolation	1000 V	1.5 - 3000 V
Voltage - Output 1	5 V	3.3 - 24 V

AM1/4S Series

DC DC CONVERTER 12V 250MW

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Mounting Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Approval Agency	Type	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Voltage - Isolation	Number of Outputs
aimtec AM1/4S-0512SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	4.5 V	5.5 V	12 V	Through Hole	76 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	20.83 mA	0.25 mW	1000 V	1
aimtec AM1/4S-4805SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	43.2 V	52.8 V	5 V	Through Hole	53 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	50 mA	250 mW	1000 V	1
aimtec AM1/4S-1215SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	15 V	Through Hole	67 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	16.6 mA	0.25 mW	1000 V	1
aimtec AM1/4S-1215SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	15 V	Through Hole	67 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	16.6 mA	0.25 mW	3000 V	1
aimtec AM1/4S-2412SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	21.6 V	26.4 V	12 V	Through Hole	56 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module		250 mW	3000 V	1
aimtec AM1/4S-0518SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	4.5 V	5.5 V	18 V	Through Hole	72 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	13.88 mA	0.25 mW	3000 V	1
aimtec AM1/4S-2407SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	21.6 V	26.4 V	7.2 V	Through Hole		85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	34.7 mA	0.25 mW	3000 V	1
aimtec AM1/4S-0518SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	4.5 V	5.5 V	18 V	Through Hole	72 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	13.88 mA	0.25 mW	1000 V	1
aimtec AM1/4S-1209SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	9 V	Through Hole	64 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	27.7 mA	0.25 mW	3000 V	1
aimtec AM1/4S-1218SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	18 V	Through Hole	65 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	13.8 mA	0.25 mW	3000 V	1
