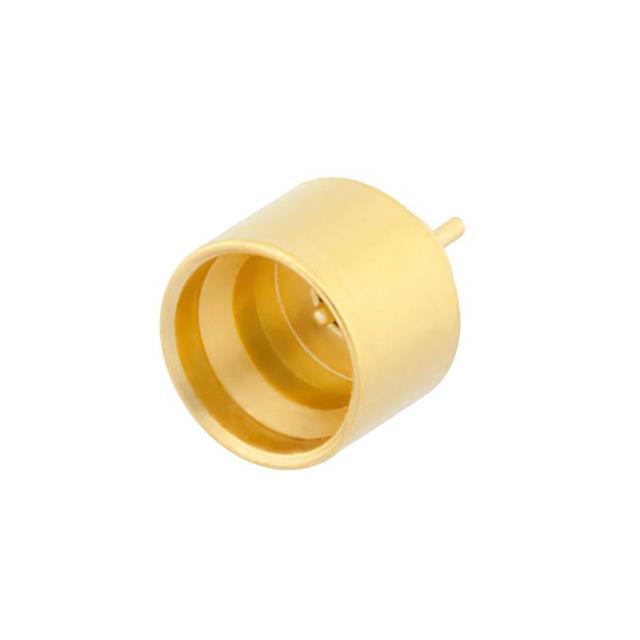

PE44933
ActivePasternack
SMP MALE FULL DETENT HERMETICALL
PE44933
ActivePasternack
SMP MALE FULL DETENT HERMETICALL
Description
General part information
PE44933
SMP Connector Plug, Male Pin 50 Ohms Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44933 |
|---|---|
| Body Finish | Gold |
| Body Material | Nickel-Cobalt |
| Center Contact Material | Nickel-Cobalt |
| Center Contact Plating | Gold |
| Connector Style | SMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Glass |
| Fastening Type | Snap-On |
| Features | Hermetically Sealed, Full Detent |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Shield Termination | Solder |
