Description
General part information
5130.2000

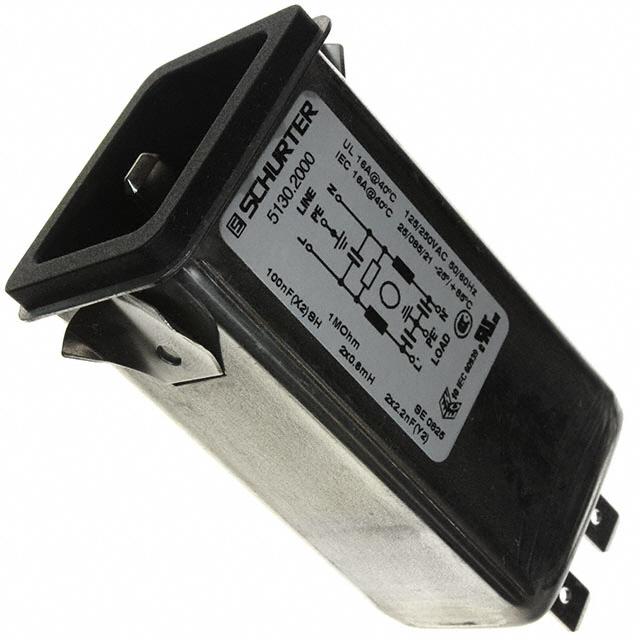

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 5130.2000 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | cULus, ENEC |
| Connector Style | IEC 320-C20 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 16 A |
| Current Rating - Filter (Maximum) | 20 A |
| Current Rating - Filter (Minimum) | 16 A |
| Features | Shielded |
| Filter Application | Commercial |
| Filter Subtype | EMI, RFI |
| Filter Type | Filtered |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Panel Cutout Length | 35 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 27 mm |
| Panel Thickness (Max) | 0.118 in |
| Panel Thickness (Min) | 0.031 in |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
| Voltage Rating - Appliance Inlet | 250 VAC |
