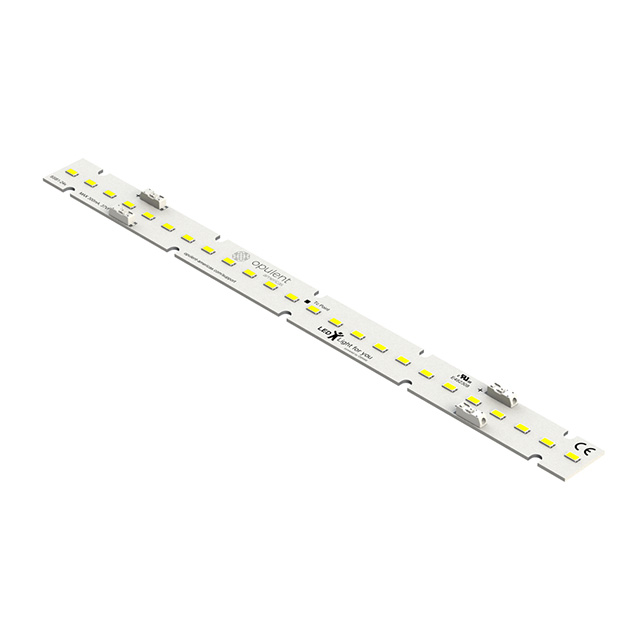

SSB1-24F01-4080-00

Active

New Energy

LED MOD SSB1 WHT LNR STRP 4000K

Search across all available documentation for this part.

Active

New Energy

LED MOD SSB1 WHT LNR STRP 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSB1-24F01-4080-00	SSB1-24 Series

CCT (K)	4000 K	3500 - 4000 K
Color	Neutral, White	Neutral, White, Warm
Configuration	Linear Light Strip	Linear Light Strip
CRI (Color Rendering Index)	80	80
Current - Max [Max]	300 mA	300 mA
Current - Test	200 mA	200 mA
Height [z]	6 mm	6 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	-	164 lm/W
Luminous Flux @ Current/Temperature	1192 lm	1140 - 1192 lm
Size / Dimension [x]	279.5 mm	279.5 mm
Size / Dimension [y]	22 mm	22 mm
Temperature - Test	50 °C	50 °C
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	34.4 V	34.4 V

LED MOD SSB1 WHT LNR STRP 4000K

Part	Lens Type	Voltage - Forward (Vf) (Typ)	Configuration	Type	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	CCT (K)	Current - Test	Temperature - Test	Current - Max [Max]	CRI (Color Rendering Index)	Height [z]	Color	Lumens/Watt @ Current - Test
New Energy SSB1-24F01-4080-00	Flat	34.4 V	Linear Light Strip	LED Module	22 mm	279.5 mm	1192 lm	4000 K	200 mA	50 °C	300 mA	80	6 mm	Neutral, White
New Energy SSB1-24F01-3580-00	Flat	34.4 V	Linear Light Strip	LED Module	22 mm	279.5 mm	1140 lm	3500 K	200 mA	50 °C	300 mA	80	6 mm	Warm, White	164 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.36

General part information

LED Lighting COBs Engines Modules LED Module SSB1 White, Neutral Linear Light Strip
