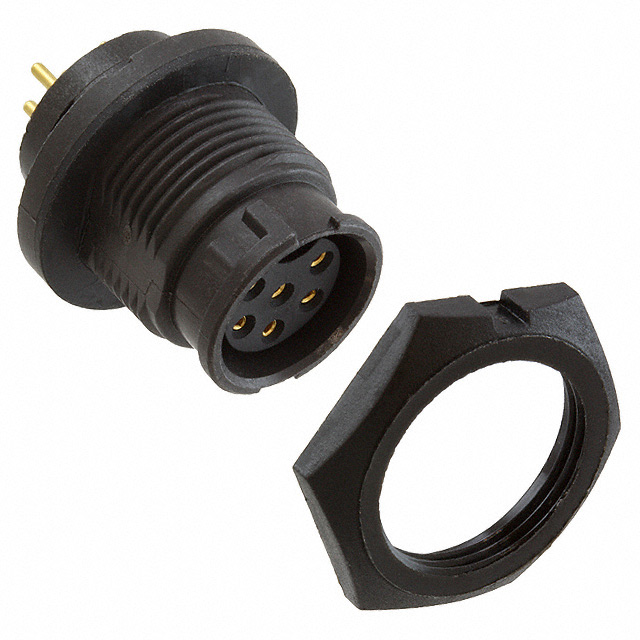

EN3P6FPX
ActiveSwitchcraft Inc.
CONN CIRCULAR SKT 6 POS SOLDER ST PANEL MOUNT 6 TERMINAL 1 PORT BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P6FPX | EN3P6F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 4 - 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder, Circuit Board, Solder, Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P6F Series
CONN CIRCULAR SKT 6 POS SOLDER ST PANEL MOUNT 6 TERMINAL 1 PORT BULK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Material | Current Rating (Amps) | Mounting Type | Color | Ingress Protection | Primary Material | Voltage Rating | Shielding | Material Flammability Rating | Number of Positions | Contact Finish - Mating | Connector Type | Orientation | Insert Material | Applications | Mounting Feature | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P6FPX | 65 °C | -40 °C | Solder | Copper Alloy | 7.5 A | Panel Mount, Through Hole | Black | IP66/IP68 | Plastic | 250 VAC | Unshielded | UL94 V-0 | 6 | Gold | Receptacle, Female Sockets | Keyed | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Bayonet Lock |
Switchcraft Inc. EN3P6FKX | 65 °C | -40 °C | Copper Alloy | 7.5 A | Black | IP66/IP68 | Plastic | 250 VAC | Unshielded | UL94 V-0 | 6 | Gold | Receptacle, Female Sockets | Keyed | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Bayonet Lock | ||
Switchcraft Inc. EN3P6FRAPCBW | 65 °C | -40 °C | Circuit Board, Solder | Copper Alloy | 4 A | Panel Mount, Right Angle, Through Hole | Black | IP66/IP68 | Plastic | 250 VAC | Unshielded | UL94 V-0 | 6 | Gold | Receptacle, Female Sockets | Keyed | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Bayonet Lock |
Switchcraft Inc. EN3P6FCX | 65 °C | -40 °C | Crimp | Copper Alloy | 7.5 A | Black | IP66/IP68 | Plastic | 250 VAC | Unshielded | UL94 V-0 | 6 | Gold | Receptacle, Female Sockets | Keyed | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Bayonet Lock | |
Switchcraft Inc. EN3P6FRAPCBN | 65 °C | -40 °C | Circuit Board, Solder | Copper Alloy | 4 A | Panel Mount, Right Angle, Through Hole | Black | IP66/IP68 | Plastic | 250 VAC | Unshielded | UL94 V-0 | 6 | Gold | Receptacle, Female Sockets | Keyed | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Bayonet Lock |
Switchcraft Inc. EN3P6FX | 65 °C | -40 °C | Copper Alloy | 7.5 A | Black | IP66/IP68 | Plastic | 250 VAC | Unshielded | UL94 V-0 | 6 | Gold | Receptacle, Female Sockets | Keyed | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.67 | |
| 10 | $ 11.30 | |||
| 25 | $ 10.32 | |||
Description
General part information
EN3P6F Series
6 Position Circular Connector Receptacle, Female Sockets Solder
