0710248
ActivePhoenix Contact
TERM BLK HEADER 9POS GREEN
0710248
ActivePhoenix Contact
TERM BLK HEADER 9POS GREEN
Description
General part information
0710248

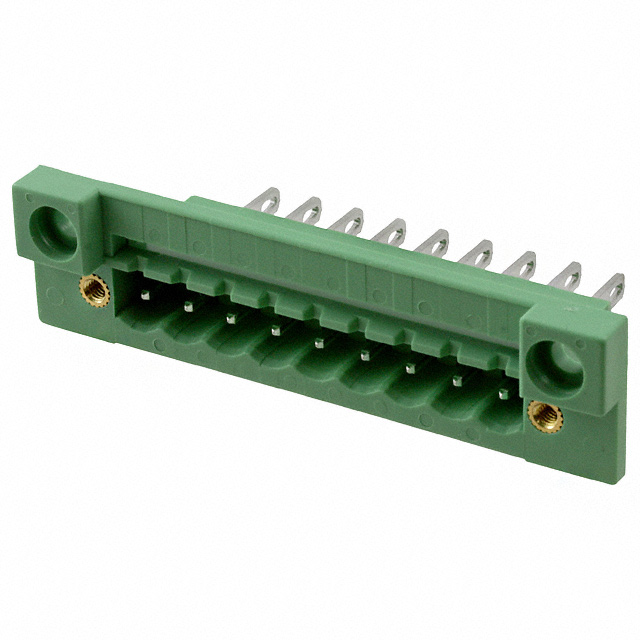

9 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 0710248 |
|---|---|
| Color | Green |
| Current - UL | 10 A |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Front Flange |
| Panel Thickness (Max) | 0.157 in |
| Panel Thickness (Min) | 0.02 in |
| Pitch | 5.08 mm |
| Positions Per Level | 9 |
| Rear Panel Wire Connection | Quick Connect, Solder Eyelet |
| Rear Panel Wire Connection (Quick Connect) Length | 0.11 in |
| Voltage - UL | 300 V |
| Width | 66.04 mm |
