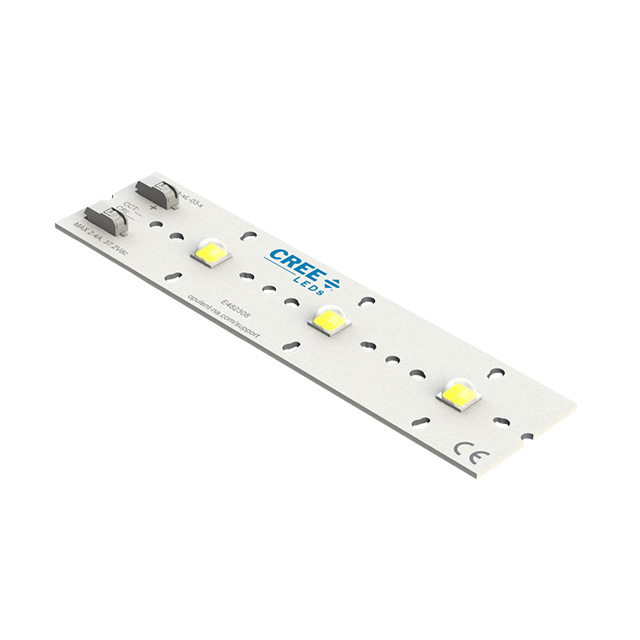

XHP70A-0L-03-0D0HM440G

Obsolete

New Energy

LED MOD XHP70A WH LNR STRP 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP70A-0L-03-0D0HM440G

Obsolete

New Energy

LED MOD XHP70A WH LNR STRP 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XHP70A Series

LED Lighting COBs Engines Modules LED Module XHP70A White, Neutral Linear Light Strip

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XHP70A-0L-03-0D0HM440G	XHP70A Series

CCT (K)	4000 K	2700 - 5700 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Neutral, White	Neutral, White, Cool, Warm
Configuration	Linear Light Strip	Square, Linear Light Strip, Starboard
CRI (Color Rendering Index)	80	70 - 90
Current - Max	-	2.4 - 4.8 A
Current - Test	1.05 A	1.05 - 2.1 A
Current - Test	-	1.05 A
Height [z]	1.52 mm	1.52 mm
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	-	113 - 145 lm/W
Luminous Flux @ Current/Temperature	-	1485 - 6840 lm
Luminous Flux @ Current/Temperature	-	1710 - 1830 lm
Luminous Flux @ Current/Temperature	-	1590 - 1710 lm
Size / Dimension	-	19.89 mm
Size / Dimension [x]	5.2 in	5.2 - 93.98 mm
Size / Dimension [y]	32.99 mm	1.3 - 73.15 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	34.8 V	6 - 46.4 V

XHP70A Series

LED MOD XHP70A NEUT WHT SQ 4000K

Part	Lens Type	Configuration	Lumens/Watt @ Current - Test	Color	CCT (K)	Temperature - Test	CRI (Color Rendering Index)	Type	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Height [z]
New Energy XHP70A-0S-01-0D0BN240E	Domed	Square	131 lm/W	Neutral, White	4000 K	85 °C	70	LED Module	1.05 A	1590 lm	11.6 V	36.83 mm	36.83 mm
New Energy XHP70A-0S-01-0D0BN450E	Domed	Square	140 lm/W	Cool, White	5000 K	85 °C	70	LED Module	1.05 A	1710 lm	11.6 V	36.83 mm	36.83 mm	5-Step MacAdam Ellipse
New Energy XHP70A-0S-04-0D0HN20E2	Domed	Square		White		85 °C	80	LED Module	1.05 A		46.4 V	70 mm	70 mm		1.52 mm
New Energy XHP70A-0L-04-0D0UJ427G	Domed	Linear Light Strip		Warm, White	2700 K	85 °C	90	LED Module	1.05 A		46.4 V	32.99 mm	6.7 in		1.52 mm
New Energy XHP70A-0S-01-0D0UJ427G	Domed	Square		Warm, White	2700 K	85 °C	90	LED Module	1.05 A		11.6 V	36.83 mm	36.83 mm		1.52 mm
New Energy XHP70A-0L-04-0D0HN20E2	Domed	Linear Light Strip		White		85 °C	80	LED Module	1.05 A		46.4 V	32.99 mm	6.7 in		1.52 mm
New Energy XHP70A-0S-04-0D0HM440G	Domed	Square		Neutral, White	4000 K	85 °C	80	LED Module	1.05 A		46.4 V	70 mm	70 mm		1.52 mm
New Energy XHP70A-0L-02-0D0HN250G	Domed	Linear Light Strip		Cool, White		85 °C	80	LED Module	1.05 A			32.99 mm	93.98 mm		1.52 mm
New Energy XHP70A-0L-03-0D0UJ427G	Domed	Linear Light Strip		Warm, White	2700 K	85 °C	90	LED Module	1.05 A		34.8 V	32.99 mm	5.2 in		1.52 mm
New Energy XHP70A-0L-02-0D0UJ427G	Domed	Linear Light Strip		Warm, White	2700 K	85 °C	90	LED Module	1.05 A			32.99 mm	93.98 mm		1.52 mm
