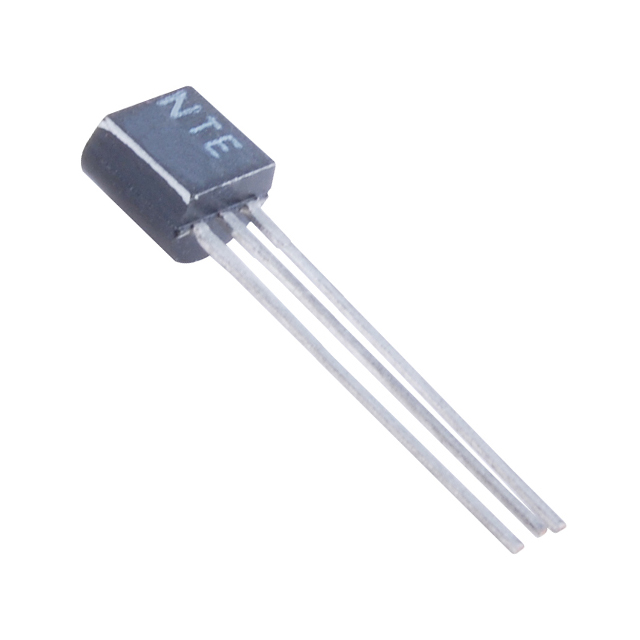

NTE232
ActiveNTE Electronics, Inc
TRANS PNP DARL 30V 0.3A TO92
NTE232
ActiveNTE Electronics, Inc
TRANS PNP DARL 30V 0.3A TO92
Description
General part information
NTE232
Bipolar (BJT) Transistor PNP - Darlington 30 V 300 mA 125MHz 625 mW Through Hole TO-92
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE232 |
|---|---|
| Current - Collector (Ic) (Max) | 0.3 mA |
| Current - Collector Cutoff (Max) | 100 nA |
| DC Current Gain (hFE) (Min) | 50000 |
| Frequency - Transition | 125 MHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Package Name | TO-92 |
| Power - Max | 625 mW |
| Transistor Type | PNP, Darlington |
| Vce Saturation (Max) | 1.5 V |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
