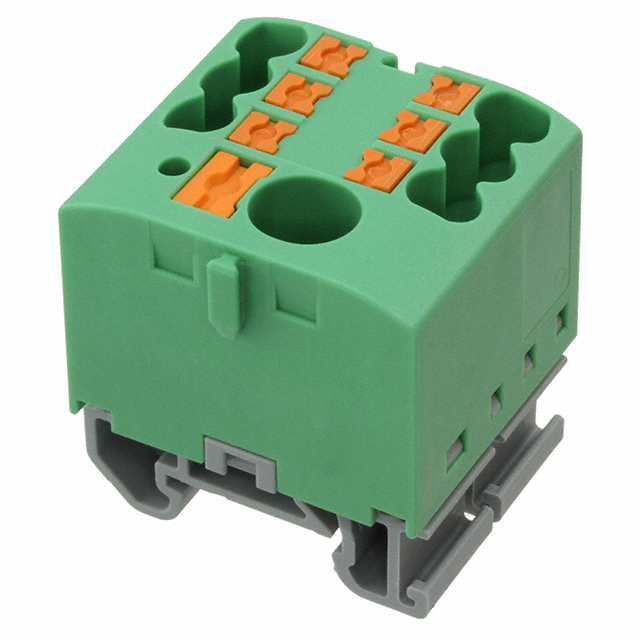

Specification	3274174

Current - IEC	24 A
Features	Block of 3
Height (Max)	1.299 in
Housing Color	Green
Length	1.11 in
Material - Insulation	Polyamide, PA, Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	DIN Rail
Number of Levels	1
Number of Positions	7
Stripping Length	12 mm
Terminal Width	25.2 mm
Termination Style	Push In, Spring
Type	Middle
Voltage - IEC	500 V

PTFIX Series

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

...

Part	Number of Levels	Current - UL	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Voltage - UL	Voltage - IEC	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Type	Mounting Type	Current - IEC	Terminal Width	Number of Positions	Termination Style	Features	Housing Color	Stripping Length	Operating Temperature (Min)	Operating Temperature (Max)	Length	Height (Max)	Material - Insulation	Material Flammability Rating	Stripping Length (Max)	Stripping Length (Min)
Phoenix Contact 3002922	1	15 A	0.14 mm²	1.5 mm²	300 V	450 V	25.5 AWG	14 AWG	Middle	DIN Rail	17.5 A	24.9 mm	12	Push In Spring	Block of 6	Blue	10 mm	-60 °C	130 °C	0.85 in	1.079 in	Nylon PA Polyamide	UL94 V-0
Phoenix Contact 3273840	1	32 A	0.2 mm²	6 mm²	600 V	630 V	24 AWG	10 AWG	Middle	Direct Mount	32 A	55.4 mm	18	Push In Spring	Block of 9	Yellow
Phoenix Contact 3273554	1	32 A	0.2 mm²	6 mm²	600 V	800 V	24 AWG	10 AWG	Middle	DIN Rail	32 A	28.6 mm	12	Push In Spring	Block of 6	Yellow
Phoenix Contact 3273666	1	32 A	0.2 mm²	6 mm²	600 V	800 V	24 AWG	10 AWG	Middle	DIN Rail	32 A	18.5 mm	6	Push In Spring	Block of 3	Green		-60 °C	130 °C	1.799 in	1.217 in	Nylon PA Polyamide	UL94 V-0	12 mm	10 mm
Phoenix Contact 3273832	1	32 A	0.2 mm²	6 mm²	600 V	630 V	24 AWG	10 AWG	Middle	Direct Mount	32 A	36.9 mm	12	Push In Spring	Block of 6	Black Yellow
Phoenix Contact 3002878	1	15 A	0.14 mm²	1.5 mm²	300 V	450 V	25.5 AWG	14 AWG	Middle	Direct Mount	17.5 A	24.9 mm	12	Push In Spring	Block of 6	Red	10 mm	-60 °C	130 °C	0.85 in	0.736 in	Nylon PA Polyamide	UL94 V-0
Phoenix Contact 3273360	1	5 A			600 V	500 V	20 AWG	8 AWG	Middle	Direct Mount	24 A	40.6 mm	13	Push In Spring	Block of 6	Green
Phoenix Contact 3273274	1	5 A	0.14 mm²	4 mm²	600 V	500 V	25.5 AWG	12 AWG	Middle	Direct Mount	24 A	15.6 mm	6	Push In Spring	Block of 3	Brown	10 mm			1.11 in	0.835 in	Nylon PA Polyamide	UL94 V-0
Phoenix Contact 3273696	1	32 A	0.2 mm²	6 mm²	600 V	800 V	24 AWG	10 AWG	Middle	DIN Rail	32 A	36.9 mm	12	Push In Spring	Block of 6	Violet
Phoenix Contact 3273068	1	5 A			600 V	500 V	20 AWG	8 AWG	Middle	DIN Rail	24 A	28.6 mm	7	Push In Spring	Block of 3	Blue
