100024816
ActiveTelegartner Inc
ADAPT STR SMAF - MCXM
100024816
ActiveTelegartner Inc
ADAPT STR SMAF - MCXM
Description
General part information
100024816

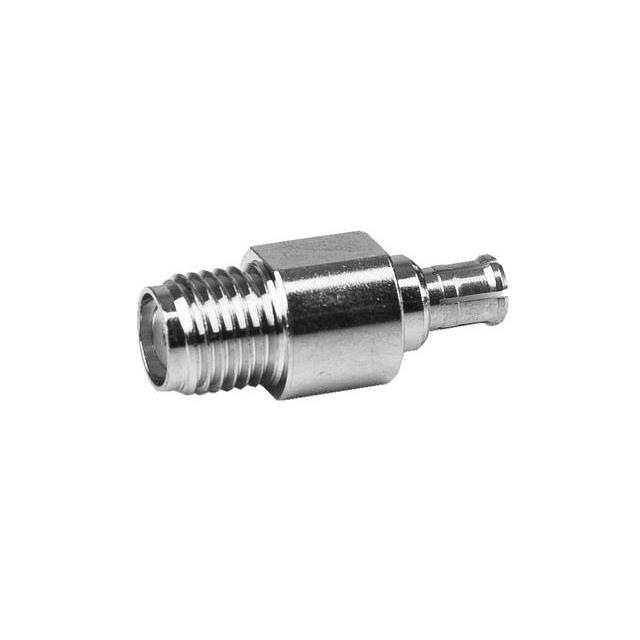

Adapter Coaxial Connector SMA Jack, Female Socket To MCX Plug, Male Pin Non-Constant
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024816 |
|---|---|
| Adapter Series | SMA to MCX |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | MCX Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 6000 MHz |
| Impedance | Non-Constant |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
