RTP215LVNDX
ActiveHoneywell Sensing and Productivity Solutions
INDUSTRIAL MOTION & POSITION SENSORS ROTARY 2 PART SENSOR
RTP215LVNDX
ActiveHoneywell Sensing and Productivity Solutions
INDUSTRIAL MOTION & POSITION SENSORS ROTARY 2 PART SENSOR
Description
General part information
RTP215LVNDX

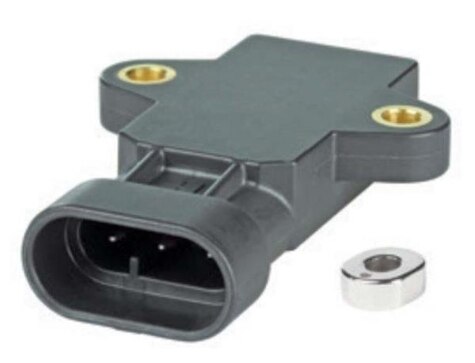

Hall Effect Sensor Rotary Position External Magnet, Included Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | RTP215LVNDX |
|---|---|
| Actuator Type | External Magnet, Included |
| For Measuring | Rotary Position |
| Linearity Tolerance | 1 % |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package / Case | Box with Connector |
| Resistance | 10 kOhm |
| Technology | Hall Effect |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
