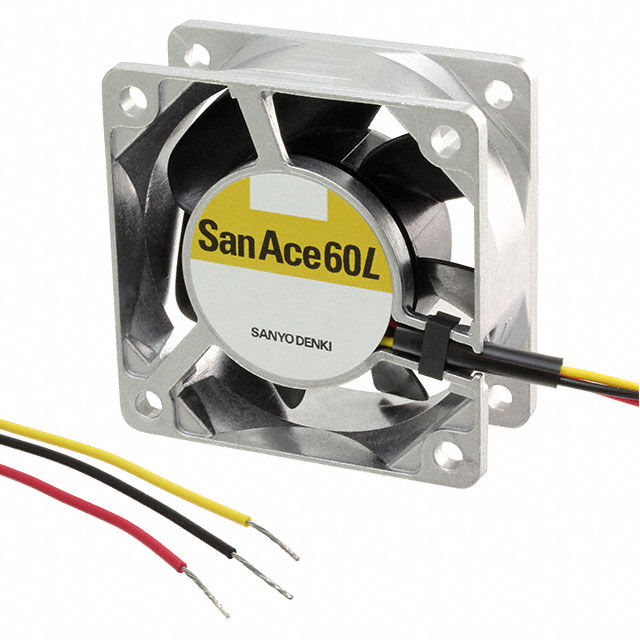

109L0612F401

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Lifetime @ Temp.	Features	Weight	Weight	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Material - Blade	Width [y]	Bearing Type	Noise	Termination	RPM	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Current Rating (Amps)	Voltage - Rated	Approval Agency	Power (Watts)
Sanyo Denki America Inc. 109L0612S401	100000 Hrs	Speed Sensor (Tach)	0.222 lb	100.7 g	0.644 m³/min	23 CFM	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	Plastic	25 mm	Ball	33 dB(A)	3 Wire Leads	4600 RPM	10.2 VDC	13.8 VDC	Aluminum	60 mm	60 mm	0.228 in H2O	56.8 Pa	0.17 A	12 VDC	CSA TUV UR
Sanyo Denki America Inc. 109L0612H401	100000 Hrs	Speed Sensor (Tach)	0.222 lb	100.7 g	0.524 mł/min	18.7 CFM	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	Plastic	25 mm	Ball	28 dB	3 Wire Leads	3800 RPM	10.2 VDC	13.8 VDC	Aluminum	60 mm	60 mm			110 mA	12 VDC	CSA TUV UR	1.32 W
Sanyo Denki America Inc. 109L0612F401	100000 Hrs	Speed Sensor (Tach)	0.222 lb	100.7 g	0.434 m³/min	15.5 CFM	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	Plastic	25 mm	Ball	24 dB	3 Wire Leads	3200 RPM	10.2 VDC	13.8 VDC	Aluminum	60 mm	60 mm	0.118 in H2O	29.4 Pa	0.09 A	12 VDC	CSA TUV UR	1.08 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	80	$ 52.70

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 15.5 CFM (0.434m³/min) 3 Wire Leads
