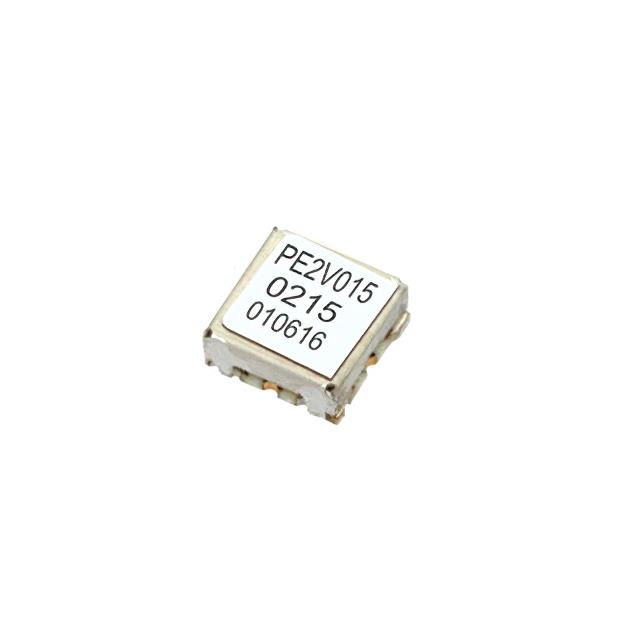

PE2V015
6.55GHz Center Frequency 0 V ~ 10 V Voltage Controlled Oscillator 5.5 ±1.5 dBm -30 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2V015 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -30 dBc |
| Frequency - Center | 6.55 GHz |
| Frequency Range (Max) | 7 GHz |
| Frequency Range (Min) | 6.1 GHz |
| Height | 0.075 in |
| Icc Max | 26 mA |
| Maximum Tuning Voltage (VDC) | 10 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8-SMD Module |
| Phase Noise Typ (dBc/Hz) | -76 dBc/Hz |
| Power (dBm) (Nominal) | 5.5 dBm |
| Power (dBm) Tolerance | 1.5 dBm |
| Pushing (MHz/V) | 5 MHz/V |
| Size / Dimension Length | 0.173 in |
| Size / Dimension Width | 0.173 in |
| Voltage - Supply | 5 VDC |
