806-020-ME16-31SMA
ActiveGlenair

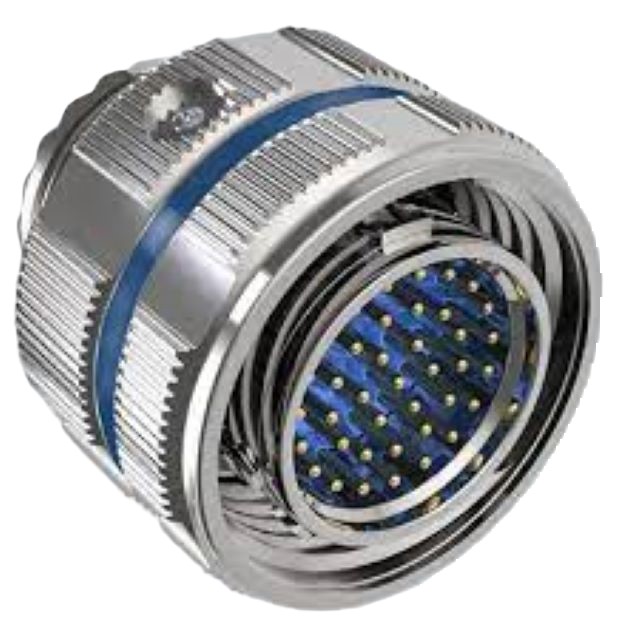

MIGHT MOUSE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
806-020-ME16-31SMA
ActiveGlenair
MIGHT MOUSE CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 806-020-ME16-31SMA | 806-020 Series |
|---|---|---|
| Applications | Aerospace, Aviation, Military | Aerospace, Aviation, Military |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 5 - 7.5 A |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Material Flammability Rating | Non Flammable | Non Flammable |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 31, 31 | 11 - 31 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel, Passivated |
| Shell Material | Aluminum | Aluminum, Stainless Steel |
| Shell Size - Insert [Max] | 31 | 11 - 31 |
| Shell Size - Insert [Min] | 16 | 9 - 16 |
| Shielding | Unshielded, Shielded | Unshielded, Shielded |
| Termination | Crimp | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3197.38 | |
| 4 | $ 2416.46 | |||
| 10 | $ 1510.26 | |||
| 20 | $ 1156.62 | |||
| 50 | $ 884.08 | |||
| Bulk | 1 | $ 2104.94 | ||
806-020 Series
MIGHT MOUSE CONNECTOR
| Part | Ingress Protection | Contact Finish - Mating | Shell Material | Number of Positions | Orientation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Current Rating (Amps) | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Mounting Feature | Termination | Applications | Shielding | Connector Type | Contact Material | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair 806-020-ME16-31SMA | Environment Resistant | Gold | Aluminum | 31, 31 | A | Silver | -65 ░C | 200 °C | Non Flammable | 7.5 A | Electroless Nickel | 1.27 µm | 50 µin | 16 | 31 | Bulkhead - Front Side Nut | Crimp | Aerospace, Aviation, Military | Shielded, Unshielded | Receptacle, Female Sockets | Copper Alloy | Metal |
Glenair 806-020-ME9-11PBA | Environment Resistant | Gold | Aluminum | 11, 11 | A | Silver | -65 ░C | 200 °C | Non Flammable | 5 A | Electroless Nickel | 1.27 µm | 50 µin | 9 | 11 | Bulkhead - Front Side Nut | Crimp | Aerospace, Aviation, Military | Shielded, Unshielded | Male Pins, Receptacle | Copper Alloy | Metal |
Glenair 806-020-Z19-11PMA | Environment Resistant | Gold | Stainless Steel | 11, 11 | A | Silver | -65 ░C | 200 °C | Non Flammable | 5 A | Passivated | 1.27 µm | 50 µin | 9 | 11 | Bulkhead - Front Side Nut | Crimp | Aerospace, Aviation, Military | Shielded, Unshielded | Male Pins, Receptacle | Copper Alloy | Metal |
Description
General part information
806-020 Series
31 Position Circular Connector Receptacle, Female Sockets Crimp
Documents
Technical documentation and resources
No documents available
