L91BP-8
ObsoleteEnergizer Battery Company

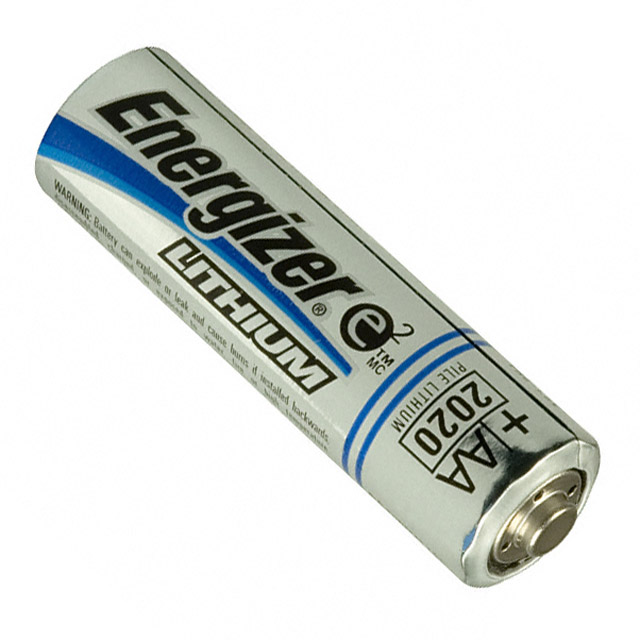

BATTERY LITHIUM 1.5V AA
L91BP-8
ObsoleteEnergizer Battery Company
BATTERY LITHIUM 1.5V AA
Description
General part information
L91BP-8
AA Lithium Iron Disulfide 1.5 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | L91BP-8 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Lithium Iron Disulfide |
| Shelf Life | 240 Months |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 0.57 in |
| Size / Dimension Height | 1.99 in |
| Storage/Refrigeration Temperature (Maximum) | 140 °F |
| Storage/Refrigeration Temperature (Minimum) | -40 °F |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.5 VDC |
| Weight | 15 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
