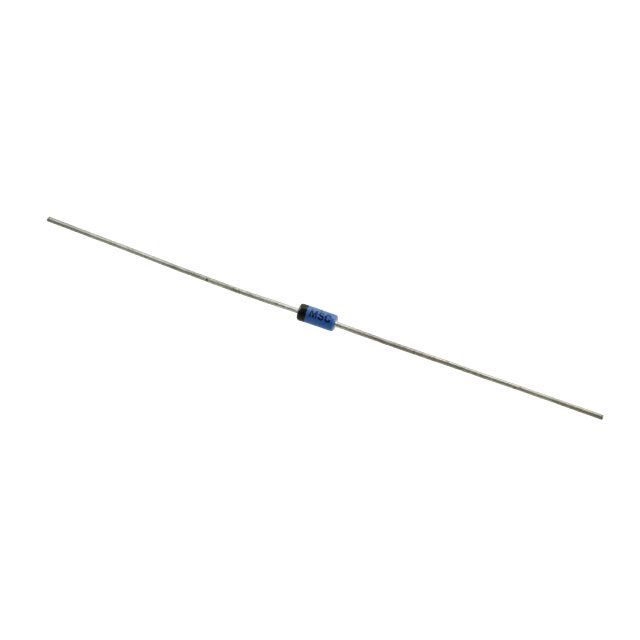

1N4614-1
ActiveZENER DIODE SINGLE 2-PIN 1.8V, 5%, 1200OHM, 500MW DO-35 BAG
Deep-Dive with AI
Search across all available documentation for this part.
1N4614-1
ActiveZENER DIODE SINGLE 2-PIN 1.8V, 5%, 1200OHM, 500MW DO-35 BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N4614-1 | 1N4614 Series |
|---|---|---|
| Grade | - | Military |
| Impedance (Max) (Zzt) [Max] | 1200 Ohms | 1200 Ohms |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Operating Temperature [Max] | 347 °F | 175 - 347 °F |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Package / Case | Axial, DO-204AA, DO-7 | Axial, DO-204AA, DO-7, DO-213AA, DO-35, DO-204AH |
| Power - Max [Max] | 500 mW | 500 mW |
| Qualification | - | MIL-PRF-19500/435 |
| Supplier Device Package | DO-7 | DO-7, DO-213AA, DO-204AH (DO-35) |
| Tolerance | 5 % | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 1.8 V | 1.8 V |
1N4614 Series
Zener Diode Single 2-Pin 1.8V, 5%, 500mW DO-213AA Bag
| Part | Voltage - Zener (Nom) (Vz) | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Power - Max [Max] | Mounting Type | Impedance (Max) (Zzt) [Max] | Voltage - Forward (Vf) (Max) @ If | Supplier Device Package | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N4614-1 | 1.8 V | Axial, DO-204AA, DO-7 | -65 ░C | 347 °F | 5 % | 500 mW | Through Hole | 1200 Ohms | 1.1 V | DO-7 | ||
Microchip Technology JAN1N4614UR-1 | 1.8 V | DO-213AA | -65 °C | 175 ░C | 5 % | 500 mW | Surface Mount | 1200 Ohms | 1.1 V | DO-213AA | MIL-PRF-19500/435 | Military |
Microchip Technology JANTX1N4614-1 | 1.8 V | Axial, DO-204AH, DO-35 | -65 ░C | 347 °F | 5 % | 500 mW | Through Hole | 1200 Ohms | 1.1 V | DO-204AH (DO-35) | MIL-PRF-19500/435 | Military |
Microchip Technology JANTX1N4614UR-1 | 1.8 V | DO-213AA | -65 ░C | 347 °F | 5 % | 500 mW | Surface Mount | 1200 Ohms | 1.1 V | DO-213AA | MIL-PRF-19500/435 | Military |
Microchip Technology JANS1N4614-1 | 1.8 V | Axial, DO-204AH, DO-35 | -65 ░C | 347 °F | 5 % | 500 mW | Through Hole | 1200 Ohms | 1.1 V | DO-204AH (DO-35) | MIL-PRF-19500/435 | Military |
Microchip Technology JANTXV1N4614-1 | 1.8 V | Axial, DO-204AH, DO-35 | -65 ░C | 347 °F | 5 % | 500 mW | Through Hole | 1200 Ohms | 1.1 V | DO-204AH (DO-35) | MIL-PRF-19500/435 | Military |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 275 | $ 3.00 | |
| Microchip Direct | N/A | 1 | $ 3.23 | |
| Newark | Each | 100 | $ 3.00 | |
| 500 | $ 2.89 | |||
Description
General part information
1N4614 Series
The 1N4099UR-1 through 1N4135UR-1 and 1N4614UR-1 through 1N4627UR-1 series are 500 mW, Zener voltage regulators in the axial-leaded, glass DO-213AA package. Voltages from 1.8 to 100V in 5%, 2%, and 1% tolerances are available. They are constructed with an internal metallurgical bond and are mil-qualified up to the JANS level for high reliability applications.
