EVB-USB4640

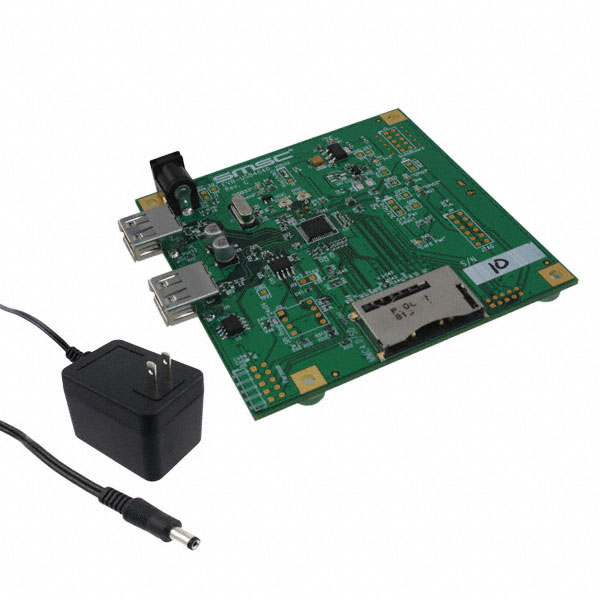

ActiveUSB4640 HIGH-SPEED INTER-CHIP (HSIC) USB 2.0 HUB AND FLASH MEDIA CONTROLLER EVALUATION BOARD
Deep-Dive with AI
Search across all available documentation for this part.
EVB-USB4640
ActiveUSB4640 HIGH-SPEED INTER-CHIP (HSIC) USB 2.0 HUB AND FLASH MEDIA CONTROLLER EVALUATION BOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EVB-USB4640 | USB4640 Series |
|---|---|---|
| - | - | |
| Applications | - | Set-Top Boxes, Printers, Cell Phones, PCS, GPS, Controller |
| Embedded | False | False |
| Function | USB 2.0 Hub | USB 2.0 Hub |
| Interface | - | USB 2.0 |
| Mounting Type | - | Surface Mount |
| Package / Case | - | 48-VFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-QFN (7x7) |
| Type | Interface | Interface |
| Utilized IC / Part | USB4640 | USB4640 |
| Voltage - Supply | - | 1.8 - 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
USB4640 Series
USB 2.0 Flash Media Controller with Hi-Speed USB Hub
| Part | Mounting Type | Voltage - Supply | Supplier Device Package | Package / Case | Applications | Function | Type | Supplied Contents | Embedded | Utilized IC / Part | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology USB4640I-HZH-03 | Surface Mount | 1.8 V | 48-QFN (7x7) | 48-VFQFN Exposed Pad | Cell Phones, GPS, PCS, Printers, Set-Top Boxes | ||||||
Microchip Technology USB4640I-HZH-03-TR | |||||||||||
Microchip Technology USB4640I-HZH-03 | |||||||||||
Microchip Technology EVB-USB4640 | USB 2.0 Hub | Interface | Board(s) | USB4640 | |||||||
Microchip Technology USB4640-HZH-03-TR | Surface Mount | 1.8 V | 48-QFN (7x7) | 48-VFQFN Exposed Pad | Cell Phones, GPS, PCS, Printers, Set-Top Boxes | ||||||
Microchip Technology USB4640-HZH-03 | Surface Mount | 1.8 V | 48-QFN (7x7) | 48-VFQFN Exposed Pad | Cell Phones, GPS, PCS, Printers, Set-Top Boxes | ||||||
Microchip Technology USB4640-HZH-03 | |||||||||||
Microchip Technology USB4640I-HZH-03-TR | Surface Mount | 3.3 V | 48-QFN (7x7) | 48-VFQFN Exposed Pad | Controller | USB 2.0 | |||||
Microchip Technology EVB-USB4640 |
Description
General part information
USB4640 Series
Microchip's USB4640 is the world's first Hi-Speed Inter-Chip (HSIC) enabled USB 2.0 hub and Flash media card reader combo solution. The 480Mbps, 2-pin HSIC 1.O-compliant upstream port provides an ultra-fast interface between an HSIC-enabled host and today's most popular Flash media cards as well as a versatile, cost-effective and power-efficient USB 2.0 hub controller with two downstream ports for Hi-Speed/Full-Speed/Low-Speed USB port expansion. HSIC's digital interconnect bus bypasses the traditional USB analog PHY, reducing power consumption while maintaining transparency to the USB drivers and software.
The USB4640 serves as a fully-integrated, single-chip solution combining USB hub expansion with ultra high-performance Flash card media reader/writer capabilities. Average sustained Flash media transfer rates exceeding 35 MB/s\* are possible if the media and host can support those rates. The Flash media controller allows read/write capability to Flash media formats from the following families: xD-Picture Card™ (xD); Memory Stick® (MS); Secure Digital (SD); MultiMediaCard™ (MMC).
\*Results are based on actual measurements on evaluation platforms developed by Microchip, and are meant only as a general guideline, not a guarantee. Actual customer results may vary based on a number of factors, including board layout and measurement technique.
