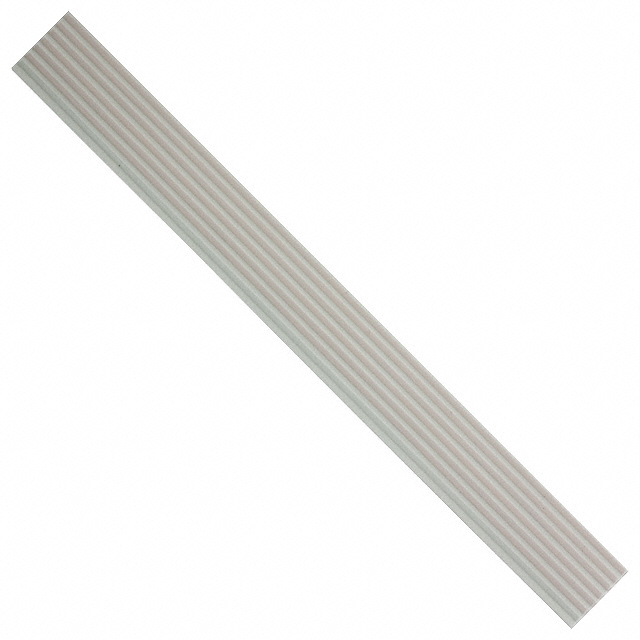

Specification	PSR1636-07

Cable Length	500 ft
Cable Width	0.4 in
Conductor Material	Copper, Bare
Conductor Thickness	0.003 in
Current Rating	2.5 A
Features	Conductor 1 Tinned
Jacket (Insulation) Material	Polyester
Jacket (Insulation) Thickness	0.002 in
Number of Conductors	7
Operating Temperature	105 °C
Pitch	0.05 in
Ratings	Style, UL, 2643
Voltage Rating	300 VAC/DC
Wire Gauge	30 AWG (Equivalent)

PSR1636 Series

Part	Conductor Thickness	Wire Gauge	Current Rating	Voltage Rating	Operating Temperature	Jacket (Insulation) Thickness	Number of Conductors	Cable Length	Conductor Material	Features	Cable Width	Jacket (Insulation) Material	Pitch	Ratings
Parlex USA LLC PSR1636-50	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	50	500 ft	Bare Copper	Conductor 1 Tinned	2.55 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-15	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	15	500 ft	Bare Copper	Conductor 1 Tinned	0.8 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-12	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	12	500 ft	Bare Copper	Conductor 1 Tinned	0.65 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-14	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	14	500 ft	Bare Copper	Conductor 1 Tinned	0.75 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-40	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	40	500 ft	Bare Copper	Conductor 1 Tinned	2.05 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-10	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	10	500 ft	Bare Copper	Conductor 1 Tinned	0.55 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-22	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	22	500 ft	Bare Copper	Conductor 1 Tinned	1.15 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-26	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	26	500 ft	Bare Copper	Conductor 1 Tinned	1.35 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-17	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	17	500 ft	Bare Copper	Conductor 1 Tinned	0.9 in	Polyester	0.05 in	2643 Style UL
Parlex USA LLC PSR1636-36	0.003 in	30 AWG (Equivalent)	2.5 A	300 VAC/DC	105 °C	0.002 in	36	500 ft	Bare Copper	Conductor 1 Tinned	1.85 in	Polyester	0.05 in	2643 Style UL
