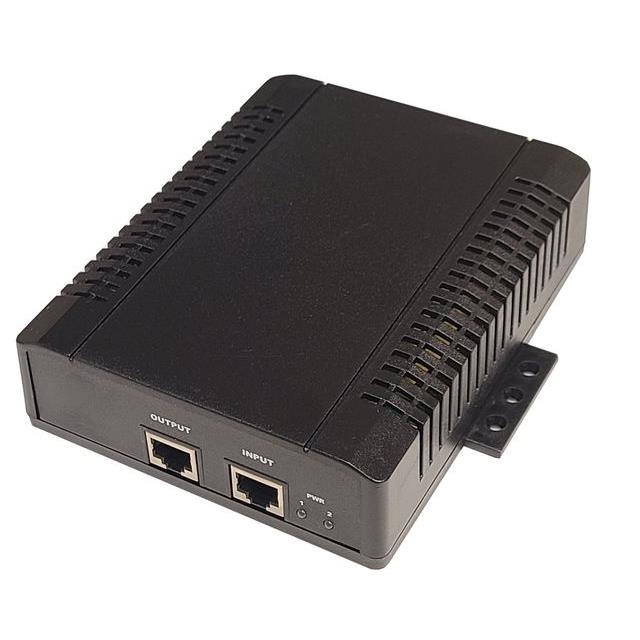

TP-POE-HP-56G

Active

Tycon Systems Inc.

56V 100W 4 PAIR HIGH POWER GIGAB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TP-POE-HP-56G

Active

Tycon Systems Inc.

56V 100W 4 PAIR HIGH POWER GIGAB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TP-POE-HP-56G

Approval Agency	CE, TUV, FCC
Current - Output	1.8 A
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps
Efficiency	85 %
Features	SCP, OCP, OVP
Input Connector	RJ45 (Data, Power)
Mounting Type	Desktop
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	100 W
Size / Dimension [x]	149.9 mm
Size / Dimension [x]	5.9 in
Size / Dimension [y]	116.8 mm
Size / Dimension [y]	4.6 in
Size / Dimension [z]	1.6 "
Size / Dimension [z]	40.6 mm
Type	Passive Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V

TP-POE Series

Part	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Features	Approval Agency	Output Connector	Efficiency	Input Connector	Mounting Type	Data Rate	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Power (Watts) - Per Port	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Compliance	Current - Output	Data Rate [Min]	Data Rate [Max]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Note
Tycon Systems Inc. TP-POE-HP-48G-RC	48 V	90 VAC	264 VAC	OCP OVP SCP	FCC TUV	RJ45 (Data Power)	85 %	RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-40 °C	80 C	1	50 W	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	Passive Injector
Tycon Systems Inc. TP-POE-HP-48DX2	56 V	90 VAC	264 VAC	OCP OVP SCP		RJ45 (Data Power)	80 %	IEC 320-C13 (Power) RJ45 (Data)	Desktop		-25 °C	50 °C	1	50 W	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	Passive Injector	IEEE802.3af IEEE802.3at	450 mA	10 Mbps	100 Mbps
Tycon Systems Inc. TP-POE-48D	48 V	90 VAC	264 VAC	OCP OVP SCP	FCC TUV	RJ45 (Data Power)	85 %	RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-30 ░C	60 °C	1	15.8 W	86.4 mm			1.4 "	3.4 "	3 "	Passive Injector	IEEE802.3af IEEE802.3at	330 mA			76.2 mm	35.6 mm
Tycon Systems Inc. TP-POE-2456GD	56 V	22 VDC	36 V	OCP OVP SCP		RJ45 (Data Power)		RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-30 ░C	60 °C	1	35 W	86.4 mm			1.4 "	3.4 "	3 "	Passive Injector	IEEE802.3af IEEE802.3at				76.2 mm	35.6 mm
Tycon Systems Inc. TP-POE-HP-48G	48 V	90 VAC	264 VAC	OCP OVP SCP		RJ45 (Data Power)	85 %	IEC 320-C8 (Power) RJ45 (Data)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-30 ░C	60 °C	1	50 W	125 mm			1.5 "	4.92 in	2.95 in	Passive Injector					75 mm	38 mm
Tycon Systems Inc. TP-POE-HP-24G	24 V	90 VAC	264 VAC	OCP OVP SCP	FCC TUV	RJ45 (Data Power)	85 %	RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-30 ░C	60 °C	1	36 W	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	Passive Injector	IEEE802.3af IEEE802.3at	1.5 A					60950-1	AC Power Cord Sold Separately
Tycon Systems Inc. TP-POE-1824G	18 V 24 V	36 V	60 V	OCP OVP SCP	CSA FCC FCC TUV TUV UL	RJ45 (Data Power)		RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-30 ░C	60 °C	1	24 W	86.4 mm			1.4 "	3.4 "	3 "	Passive Injector	IEEE802.3af IEEE802.3at	1 A			76.2 mm	35.6 mm	60950-1
Tycon Systems Inc. TP-POE+10G	53 V	100 VAC	240 VAC	OCP SCP	CE FCC UL	RJ45 (Data Power)	78 %	RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-20 C	50 °C	1	31.8 W	139.7 mm	63.5 mm	35.6 mm	1.4 "	5.5 in	2.5 in	Midspan Injector	IEEE802.3af IEEE802.3at	600 mA
Tycon Systems Inc. TP-POE-48GD	48 V	90 VAC	264 VAC	OCP OVP SCP	FCC TUV	RJ45 (Data Power)	85 %	RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-30 ░C	60 °C	1	16.8 W	86.4 mm			1.4 "	3.4 "	3 "	Passive Injector	IEEE802.3af IEEE802.3at	350 mA			76.2 mm	35.6 mm	60950-1
Tycon Systems Inc. TP-POE-HP-48GD	56 V	90 VAC	264 VAC	OCP OVP SCP	FCC TUV	RJ45 (Data Power)	85 %	RJ45 (Data Power)	Desktop	10 Mbps 100 Mbps 1000 Mbps	-30 ░C	60 °C	1	35 W	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	Passive Injector	IEEE802.3af IEEE802.3at						60950-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 171.89

Description

General part information

TP-POE Series

56V Power Over Ethernet (POE) 1 Port Passive Injector 10/100/1000 Mbps Data Rate
